  11. Dual Piston Cylinder, 10mm Bore, 75mm Stroke, Double Acting, Aluminum .

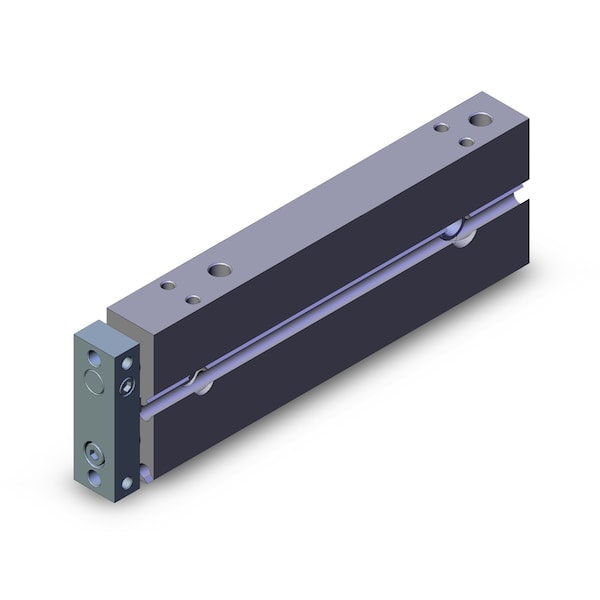

Smc Dual Piston Cylinder, 10mm Bore, 75mm Stroke, Double Acting, Aluminum . CXSJM10-75 - main

Dual Piston Cylinder, 10mm Bore, 75mm Stroke, Double Acting, Aluminum .

  • Mfr # CXSJM10-75

  • Zoro # G4399059

product price: $124.99
/ea
Free Shipping & Returns

Key Features

Cylinder Action
Double Acting
Bore Dia.
10mm
Max. Pressure
0.7 MPa
Body Material
Aluminum
Rod Dia.
6mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CXSJM10-75
Zoro #
G4399059
UPC #
-
Country of Origin
Japan

Dimensions

Bore Dia.
10mm
Rod Dia.
6mm
Port Size
M5 x 0.8
Overall Width
15 mm
Overall Height
42 mm
Stroke Length
75 mm
Extended Length
206 mm
Inlet Size
M5 x 0.8
Rod Diameter
6 mm
Retracted Length
131 mm
Bore Diameter
10 mm
Air Inlet Size
M5 x 0.8

Details

Item
Dual Piston Cylinder
Cylinder Action
Double Acting
Max. Pressure
0.7 MPa
Body Material
Aluminum
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
Stroke
75mm
Mount
Basic
Piston Rod Material
Carbon Steel
Single Acting/Double Acting
Double Acting
Standards
RoHS Compliant
Piston Material
Aluminum
Cushion Type
None
Weight
0.19 kg
Mounting Orientation
Horizontal, Vertical
Piston Material Finish
Chromate Coated
Minimum Operating Pressure
0.1 MPa
Number of Rods
Double Rod
Minimum Operating Temperature
-10 Degrees C
Air Inlet Center to Center Distance
83 mm
Series
CXSJ
System of Measurement
Metric
Maximum Operating Pressure
101.53 psi
For Fluid Type
Air
Actuation Type
Spring Extend, Spring Retract
Maximum Operating Temperature
140 Degrees F
Body Material Finish
Hard Anodized
Body Material Grade
A6063S-T5
Cylinder Stroke
75 mm
Port Location
Side Ported
Air Inlet Type
M thread
Bearing Type
Slide Bearing
Air Inlet Gender
Female

Description

Dual Piston Cylinder,10mmBore,75mmStrke
