Shop SMC

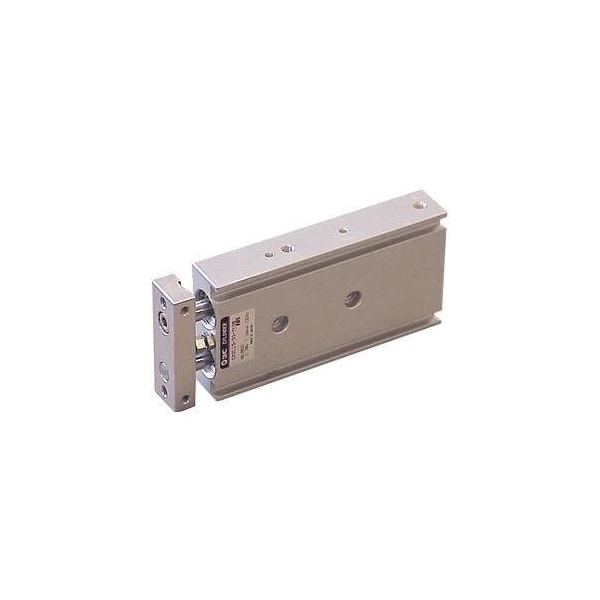

Dual Piston Cylinder, 10mmBore, 15mmStroke

  • Mfr # CXSL10-15

  • Zoro # G4400501

product price:
$
134.99
/ea
Free Shipping & Returns

Key Features

Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
Piston Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CXSL10-15
Zoro #
G4400501
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
17 mm
Overall Height
46 mm
Inlet Size
M5 x 0.8
Extended Length
102 mm
Retracted Length
87 mm
Stroke Length
15 mm
Bore Diameter
10 mm
Rod Diameter
6 mm
Air Inlet Size
M5 x 0.8

Details

Item
Dual Piston Cylinder
Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
Piston Material
Aluminum
Piston Rod Material
Carbon Steel
Cushion Type
None
Standards
RoHS Compliant
Weight
0.16 kg
Mounting Orientation
Horizontal, Vertical
Air Inlet Center to Center Distance
20 mm
Minimum Operating Temperature
-10 Degrees C
System of Measurement
Metric
Actuation Type
Spring Extend, Spring Retract
Maximum Operating Temperature
140 Degrees F
Series
CXS
Number of Rods
Double Rod
For Fluid Type
Air
Piston Material Finish
Chromate Coated
Maximum Operating Pressure
101.53 psi
Minimum Operating Pressure
0.1 MPa
Body Material Finish
Hard Anodized
Cylinder Stroke
15 mm
Body Material Grade
A6063S-T5
Port Location
Side Ported
Air Inlet Type
M thread
Air Inlet Gender
Female
Bearing Type
Ball Bushing

Description

Dual Piston Cylinder,10mmBore,15mmStroke
