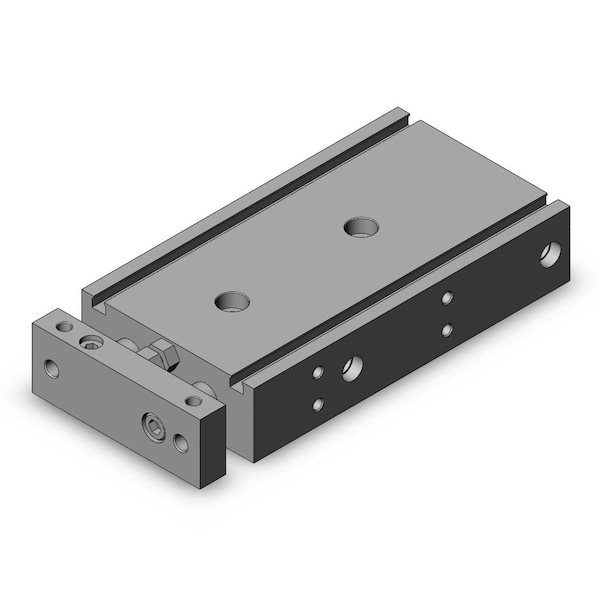

Dual Piston Cylinder, 25mmBore, 75mmStroke

  • Mfr # CXSM25TN-75

  • Zoro # G4401159

product price:  $159.99
/ea
Free Shipping & Returns

Key Features

Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
Cushion Type
None
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CXSM25TN-75
Zoro #
G4401159
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
80 mm
Overall Width
30 mm
Retracted Length
171 mm
Rod Diameter
12 mm
Extended Length
246 mm
Stroke Length
75 mm
Bore Diameter
25 mm
Inlet Size
1/8 in
Air Inlet Size
45665

Details

Item
Dual Piston Cylinder
Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
Cushion Type
None
Piston Rod Material
Carbon Steel
Piston Material
Aluminum
Standards
RoHS Compliant
Weight
0.97 kg
Number of Rods
Double Rod
For Fluid Type
Air
Minimum Operating Pressure
0.05 MPa
Air Inlet Center to Center Distance
60 mm
Maximum Operating Pressure
101.53 psi
Air Inlet Type
1/8 in NPT
System of Measurement
Metric
Minimum Operating Temperature
-10 Degrees C
Actuation Type
Spring Extend, Spring Retract
Maximum Operating Temperature
140 Degrees F
Piston Material Finish
Chromate Coated
Series
CXS
Mounting Orientation
Horizontal, Vertical
Body Material Grade
A6063S-T5
Cylinder Stroke
75 mm
Body Material Finish
Hard Anodized
Port Location
Side Ported
Bearing Type
Slide Bearing
Air Inlet Gender
Female

Description

Dual Piston Cylinder,25mmBore,75mmStroke
