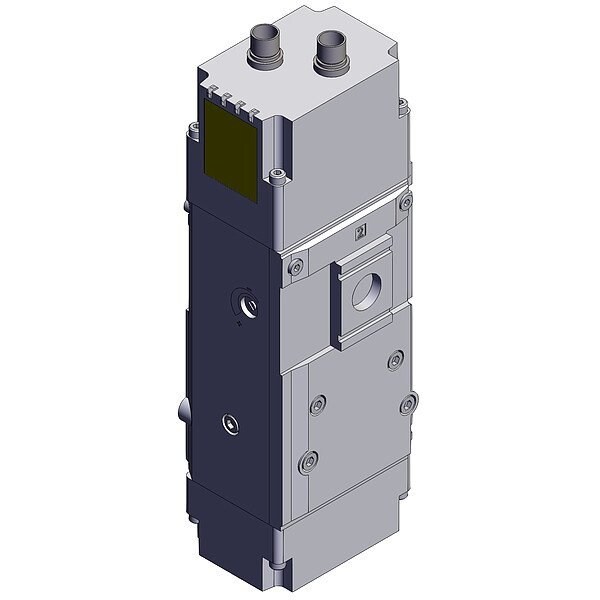

Exhaust Valve, 257 3/10 mm L, 24V DC
Mfr # VPX406KT-5KONZ-N2-A4N
Zoro # G721915598
product price:Â
$
1,570.99
/ea
Free Shipping & Returns
Key Features
Flow Rate - Maximum
15,000 lpm
Electrical Connection
M12
Operating Pressure - Minimum
1/4 MPa
Operating Temperature - Maximum
50 Degrees C
Series
VPX406
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VPX406KT-5KONZ-N2-A4N
- Zoro #
- G721915598
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 256 9/10 mm
- Wire Rope Length
- 257 3/10 mm
- Overall Width
- 77 1/10 mm
- Overall Length
- 257 3/10 mm
- Length
- 257 3/10 mm
Details
- Flow Rate - Maximum
- 15,000 lpm
- Electrical Connection
- M12
- Operating Pressure - Minimum
- 1/4 MPa
- Operating Temperature - Maximum
- 50 Degrees C
- Series
- VPX406
- Item
- Exhaust Valve
- Features
- High Exhaust Flow, LED Indicators and Optional Gauges Provide Additional Visual Confirmation of Valve Status and Line Pressure, Simplified Electrical Connection, Space Saving, With Integrated Soft Start Function
- Operating Temperature - Minimum
- 0 Degrees C
- IP Rating
- IP65
- Includes Pressure Gauge
- Pressure Gauge Not Included
- Operating Pressure - Maximum
- 1 MPa
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Output Circuit Type
- PNP
- Rated Coil Voltage
- 24V DC
Description
Safe Exhaust Valve
