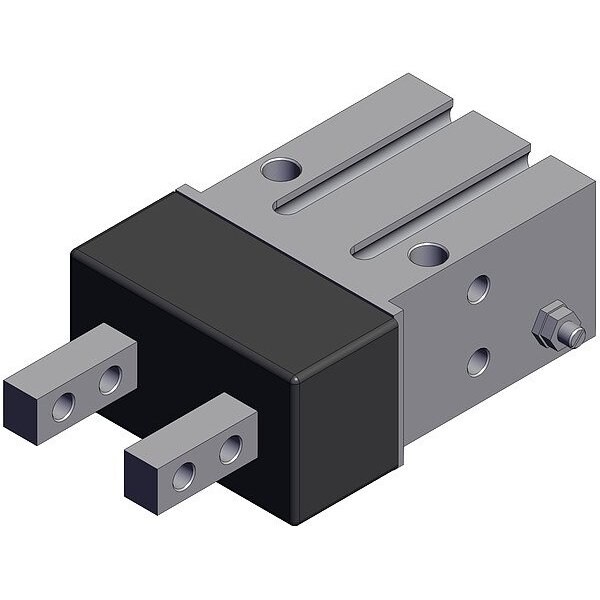

GRIPPER, MHK, WEDGE CAM SLIDE GUIDE
Mfr # MHK2-12D
Zoro # G714534690
product price:Â $293.99
/ea
Free Shipping & Returns
Key Features
Open Width
13 mm
Stroke Length
4 mm
Maximum Operating Pressure
87 psi
Minimum Operating Pressure
15 psi
Overall Height
20 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MHK2-12D
- Zoro #
- G714534690
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Open Width
- 13 mm
- Stroke Length
- 4 mm
- Overall Height
- 20 mm
- Overall Length
- 63 mm
- Overall Width
- 34 mm
- Bore Diameter
- 12 mm
- Wire Rope Length
- 63 mm
Details
- Item
- Parallel Gripper
- Maximum Operating Pressure
- 87 psi
- Minimum Operating Pressure
- 15 psi
- Body Material
- Aluminum
- Weight
- 0.2 lb
- Repeatability
- +/-0.01 mm
- Finger Material
- Carbon Steel
- Maximum Operating Temperature
- 140 Degrees F
- System of Measurement
- Metric
- Series
- MHK
- Standards
- RoHS Compliant
- Minimum Operating Temperature
- 14 Degrees F
- Body Material Finish
- Hard Anodized
Description
Parallel Gripper, Series MHK, Open Width 13 mm, Stroke Length 4 mm, Maximum Operating Pressure 87 psi, Minimum Operating Pressure 15 psi, Overall Length 63 mm, Overall Width 34 mm, Overall Height 20 mm, Body Material Aluminum, Finger Material Carbon Steel, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 0.2 lb, Body Material Finish Hard Anodized, System of Measurement Metric, Repeatability +/-0.01 mm
