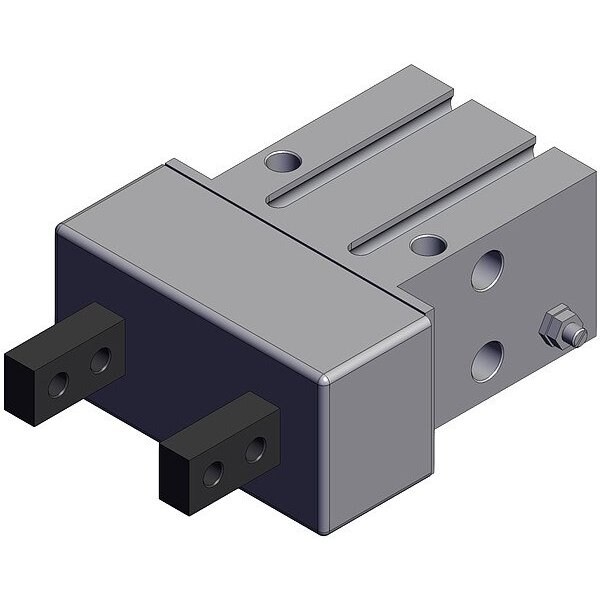

GRIPPER, MHK, WEDGE CAM SLIDE GUIDE
Mfr # MHK2-16D
Zoro # G414534679
product price:Â $310.99
/ea
Free Shipping & Returns
Key Features
Open Width
20.6 mm
Stroke Length
6 mm
Minimum Operating Temperature
14 Degrees F
Standards
RoHS Compliant
Finger Material
Carbon Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MHK2-16D
- Zoro #
- G414534679
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Open Width
- 20.6 mm
- Stroke Length
- 6 mm
- Overall Width
- 45 mm
- Overall Length
- 67.3 mm
- Overall Height
- 23.6 mm
- Bore Diameter
- 16 mm
- Wire Rope Length
- 67.3 mm
Details
- Item
- Parallel Gripper
- Minimum Operating Temperature
- 14 Degrees F
- Standards
- RoHS Compliant
- Finger Material
- Carbon Steel
- Maximum Operating Temperature
- 140 Degrees F
- Series
- MHK
- Repeatability
- +/-0.01 mm
- System of Measurement
- Metric
- Body Material
- Aluminum
- Maximum Operating Pressure
- 87 psi
- Weight
- 0.31 lb
- Minimum Operating Pressure
- 15 psi
- Body Material Finish
- Hard Anodized
Description
Parallel Gripper, Series MHK, Open Width 20.6 mm, Stroke Length 6 mm, Maximum Operating Pressure 87 psi, Minimum Operating Pressure 15 psi, Overall Length 67.3 mm, Overall Width 45 mm, Overall Height 23.6 mm, Body Material Aluminum, Finger Material Carbon Steel, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 0.31 lb, Body Material Finish Hard Anodized, System of Measurement Metric, Repeatability +/-0.01 mm
