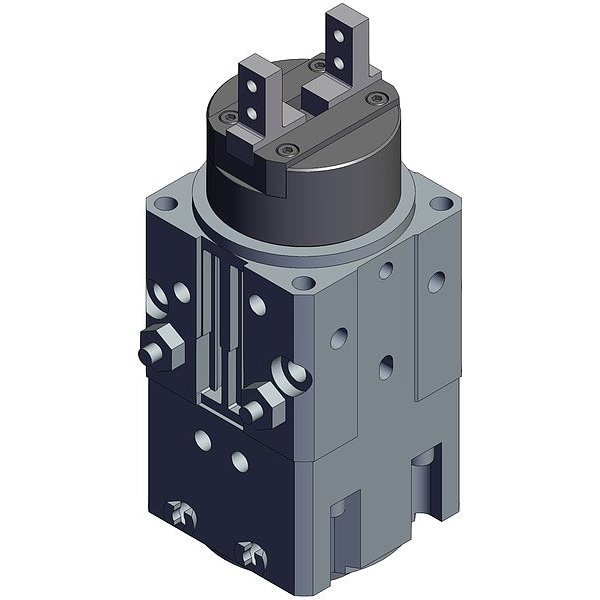

GRIPPER, ROTARY
Mfr # MRHQ16D-180S-N
Zoro # G814534095
product price:Â
$
787.99
/ea
Free Shipping & Returns
Key Features
Open Width
20.9 mm
Minimum Operating Temperature
41 Degrees F
Overall Height
130 mm
Minimum Operating Pressure
36 psi
Maximum Operating Temperature
140 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MRHQ16D-180S-N
- Zoro #
- G814534095
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Open Width
- 20.9 mm
- Overall Height
- 130 mm
- Overall Width
- 50 mm
- Overall Length
- 50 mm
- Stroke Length
- 6 mm
- Bore Diameter
- 16 mm
- Wire Rope Length
- 50 mm
Details
- Item
- Parallel Gripper
- Minimum Operating Temperature
- 41 Degrees F
- Minimum Operating Pressure
- 36 psi
- Maximum Operating Temperature
- 140 Degrees F
- Body Material Finish
- Anodized
- Body Material
- Aluminum
- Maximum Operating Pressure
- 101 psi
- Series
- MRHQ
- Repeatability
- +/-0.01 mm
- System of Measurement
- Metric
- Weight
- 1.5 lb
- Actuator Style
- Vane
Description
Parallel Gripper, Series MRHQ, Open Width 20.9 mm, Stroke Length 6 mm, Maximum Operating Pressure 101 psi, Minimum Operating Pressure 36 psi, Overall Length 50 mm, Overall Width 50 mm, Overall Height 130 mm, Body Material Aluminum, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 41 Degrees F, Weight 1.5 lb, Body Material Finish Anodized, System of Measurement Metric, Repeatability +/-0.01 mm
