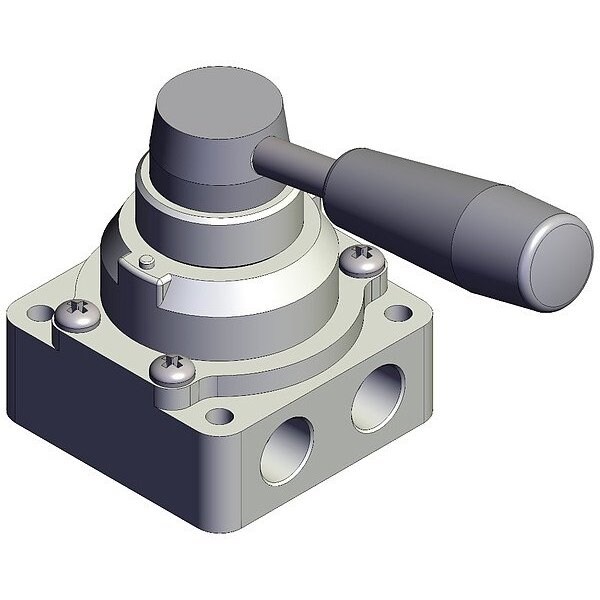

Hand Valve, Exhaust, VH, Three-Position
Mfr # VH201-02
Zoro # G515191665
product price:Â $58.04
/eaKey Features
Center Position
Exhaust
Series
VH
Number of Positions
Three-Position
Overall Height
90 mm
Overall Length
125 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VH201-02
- Zoro #
- G515191665
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 90 mm
- Overall Length
- 125 mm
- Overall Width
- 62 mm
- Valve Port Connection Size
- 1/4 in
- Base Size
- 1/4 in
- Wire Rope Length
- 125 mm
Details
- Item
- Hand Valve
- Center Position
- Exhaust
- Series
- VH
- Number of Positions
- Three-Position
- Body Material
- Aluminum
- Seal Material
- Buna-N
- Operating Temperature - Maximum
- 60 Degrees C
- Operating Temperature - Minimum
- -5 Degrees C
- For Media
- Air
- Operating Pressure - Maximum
- 1 MPa
- Body Style
- Side-Ported
- Coefficient of Volume (Cv)
- 0.38
- Valve Type
- Rotary
- Standards
- RoHS Compliant
- Lubrication
- Lubrication Not Required
- Actuator Type
- Lever
- Valve Port Connection Type
- BSPT
Description
Hand Valve, Center Position Exhaust, Body Material Aluminum, Overall Length 125 mm, Overall Height 90 mm, Overall Width 62 mm, Series VH
