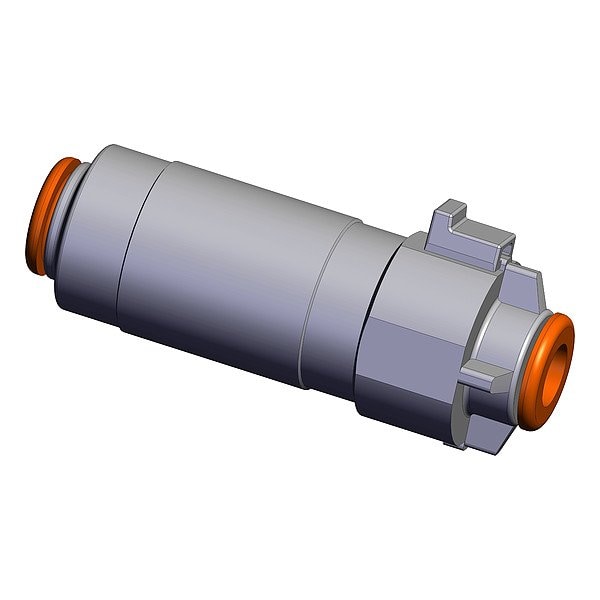

In-Line Air Filter, Push-to-Connect
- Mfr # ZFC5D
- Zoro # G021915984
product price:Â
$
18.69
/ea
Key Features
Air Outlet Size
8 mm
Filter Efficiency
95 %
Air Outlet Type
Push-to-Connect
Series
ZF
Air Inlet Size
8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZFC5D
- Zoro #
- G021915984
- UPC #
- -
- Country of Origin
- Japan
- Filter Efficiency
- 95 %
- Air Outlet Type
- Push-to-Connect
- Series
- ZF
- Weight
- 10.5 g
- Filter Element Material
- Sintered Resin
- For Fluid Type
- Air
- System Location
- Air Line
- Item
- In-Line Air Filter
- Minimum Operating Temperature
- 0 Degrees C
- Maximum Operating Temperature
- 60 Degrees C
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Flow Rate
- 200 lpm
- Minimum Operating Pressure
- -100 kPa
- For Substance Type
- Air
- Air Inlet Type
- Push-to-Connect
- Body Material
- Polycarbonate
- Pressure Drop
- 30 kPa
- Maximum Operating Pressure
- 1 MPa
- Filter Rating
- 5 micron
Description
In-Line Air Filter, Air Inlet Size 8 mm, Air Inlet Type Push-to-Connect, Air Outlet Size 8 mm, Air Outlet Type Push-to-Connect, Overall Length 53.9 mm, Outside Diameter 1/4 in, Filter Rating 5 micron, Maximum Flow Rate 200 lpm, Maximum Operating Pressure 1 MPa, Body Material Polycarbonate, Filter Efficiency 95 Percent, Filter Element Material Sintered Resin, For Fluid Type Air, For Substance Type Air, Maximum Operating Temperature 60 Degrees C, Minimum Operating Pressure -100 kPa
