Shop SMC

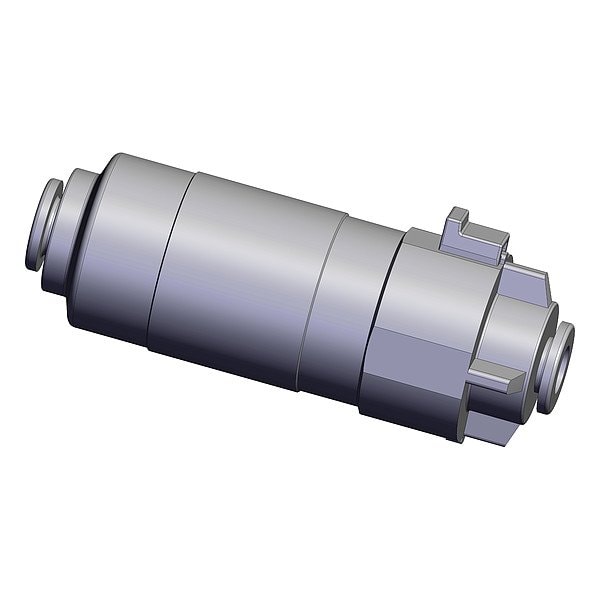

In-Line Air Filter, Push-to-Connect

  • Mfr # ZFC74

  • Zoro # G821914866


product price:
$
20.95
/ea

Key Features

Maximum Operating Temperature
60 Degrees C
Filter Element Material
Sintered Resin
Series
ZF
For Substance Type
Air
Maximum Flow Rate
250 lpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZFC74
Zoro #
G821914866
UPC #
-
Country of Origin
Japan
Maximum Operating Temperature
60 Degrees C
Filter Element Material
Sintered Resin
Series
ZF
For Substance Type
Air
Item
In-Line Air Filter
Maximum Flow Rate
250 lpm
For Fluid Type
Air
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Minimum Operating Pressure
-100 kPa
Filter Efficiency
95 %
Pressure Drop
30 kPa
Air Inlet Type
Push-to-Connect
Body Material
Polycarbonate
Weight
20 g
Maximum Operating Pressure
1 MPa
System Location
Air Line
Minimum Operating Temperature
0 Degrees C
Filter Rating
5 micron
Air Outlet Type
Push-to-Connect

Description

In-Line Air Filter, Air Inlet Size 12 mm, Air Inlet Type Push-to-Connect, Air Outlet Size 12 mm, Air Outlet Type Push-to-Connect, Overall Length 68.3 mm, Outside Diameter 6 mm, Filter Rating 5 micron, Maximum Flow Rate 250 lpm, Maximum Operating Pressure 1 MPa, Body Material Polycarbonate, Filter Efficiency 95 Percent, Filter Element Material Sintered Resin, For Fluid Type Air, For Substance Type Air, Maximum Operating Temperature 60 Degrees C, Minimum Operating Pressure -100 kPa
