Shop SMC

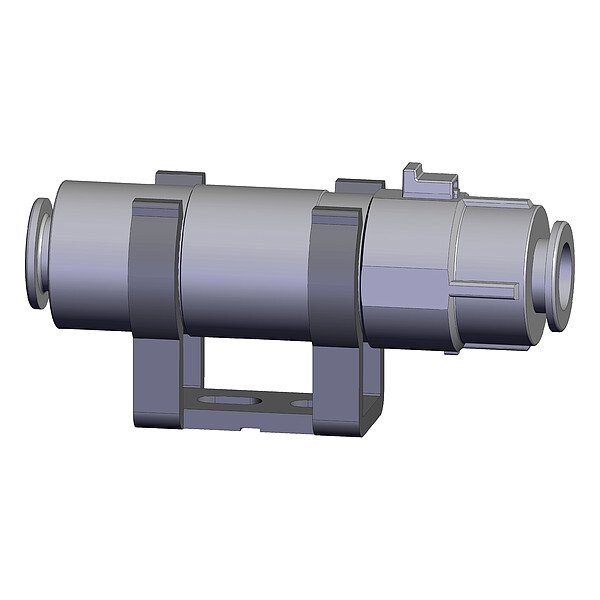

In-Line Air Filter, Push-to-Connect

  • Mfr # ZFC76-B

  • Zoro # G221915340


product price:
$
21.45
/ea

Key Features

Series
ZF
Air Outlet Type
Push-to-Connect
Maximum Operating Temperature
60 Degrees C
Pressure Drop
30 kPa
System Location
Air Line
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZFC76-B
Zoro #
G221915340
UPC #
-
Country of Origin
Japan
Series
ZF
Air Outlet Type
Push-to-Connect
Maximum Operating Temperature
60 Degrees C
Pressure Drop
30 kPa
System Location
Air Line
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Item
In-Line Air Filter
Minimum Operating Pressure
-100 kPa
Filter Element Material
Sintered Resin
Minimum Operating Temperature
0 Degrees C
Filter Rating
5 micron
Weight
25 g
Maximum Operating Pressure
1 MPa
Filter Efficiency
95 %
Air Inlet Type
Push-to-Connect
For Fluid Type
Air
For Substance Type
Air
Maximum Flow Rate
550 lpm
Body Material
Polycarbonate

Description

In-Line Air Filter, Air Inlet Size 10 mm, Air Inlet Type Push-to-Connect, Air Outlet Size 12 mm, Air Outlet Type Push-to-Connect, Overall Length 79.6 mm, Outside Diameter 10 mm, Filter Rating 5 micron, Maximum Flow Rate 550 lpm, Maximum Operating Pressure 1 MPa, Body Material Polycarbonate, Filter Efficiency 95 Percent, Filter Element Material Sintered Resin, For Fluid Type Air, For Substance Type Air, Maximum Operating Temperature 60 Degrees C, Minimum Operating Pressure -100 kPa
