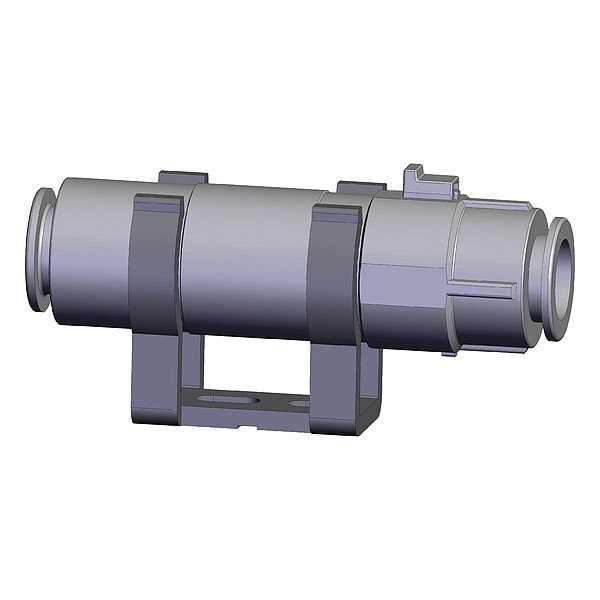

In-Line Air Filter, Push-to-Connect
- Mfr # ZFC77-B
- Zoro # G321915622
product price:Â
$
21.45
/ea
Key Features
Maximum Flow Rate
650 lpm
Filter Rating
5 micron
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Wire Rope Length
79.6 mm
Body Material
Polycarbonate
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZFC77-B
- Zoro #
- G321915622
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Wire Rope Length
- 79.6 mm
- Outside Diameter
- 12 mm
- Air Inlet Size
- 12 mm
- Air Outlet Size
- 12 mm
- Overall Length
- 79.6 mm
- Length
- 79.6 mm
Description
In-Line Air Filter, Air Inlet Size 12 mm, Air Inlet Type Push-to-Connect, Air Outlet Size 12 mm, Air Outlet Type Push-to-Connect, Overall Length 79.6 mm, Outside Diameter 12 mm, Filter Rating 5 micron, Maximum Flow Rate 650 lpm, Maximum Operating Pressure 1 MPa, Body Material Polycarbonate, Filter Efficiency 95 Percent, Filter Element Material Sintered Resin, For Fluid Type Air, For Substance Type Air, Maximum Operating Temperature 60 Degrees C, Minimum Operating Pressure -100 kPa
