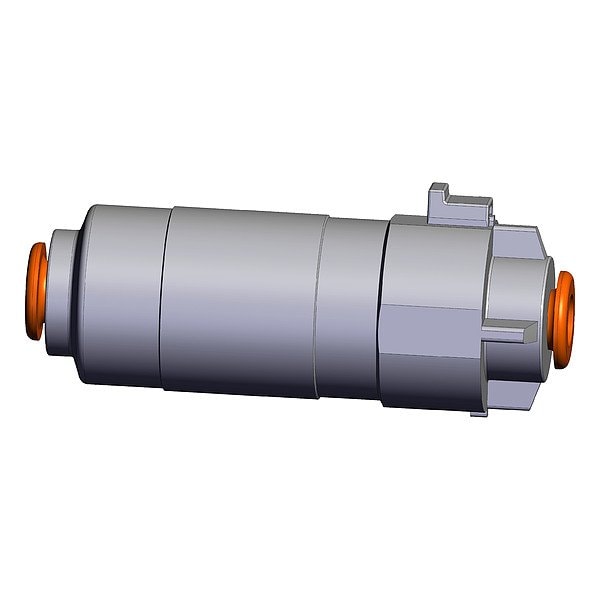

In-Line Air Filter, Push-to-Connect
Mfr # ZFC7D
Zoro # G821914590
product price:Â
$
20.95
/ea
Key Features
Weight
20 g
Air Inlet Size
12 mm
Filter Efficiency
95 %
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
System Location
Air Line
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZFC7D
- Zoro #
- G821914590
- UPC #
- -
- Country of Origin
- Japan
- Item
- In-Line Air Filter
- Weight
- 20 g
- Filter Efficiency
- 95 %
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- System Location
- Air Line
- Air Outlet Type
- Push-to-Connect
- Maximum Flow Rate
- 250 lpm
- For Fluid Type
- Air
- Minimum Operating Temperature
- 0 Degrees C
- Maximum Operating Pressure
- 1 MPa
- Body Material
- Polycarbonate
- For Substance Type
- Air
- Pressure Drop
- 30 kPa
- Maximum Operating Temperature
- 60 Degrees C
- Air Inlet Type
- Push-to-Connect
- Filter Element Material
- Sintered Resin
- Minimum Operating Pressure
- -100 kPa
- Filter Rating
- 5 micron
- Series
- ZF
Description
In-Line Air Filter, Air Inlet Size 12 mm, Air Inlet Type Push-to-Connect, Air Outlet Size 12 mm, Air Outlet Type Push-to-Connect, Overall Length 68.3 mm, Outside Diameter 1/4 in, Filter Rating 5 micron, Maximum Flow Rate 250 lpm, Maximum Operating Pressure 1 MPa, Body Material Polycarbonate, Filter Efficiency 95 Percent, Filter Element Material Sintered Resin, For Fluid Type Air, For Substance Type Air, Maximum Operating Temperature 60 Degrees C, Minimum Operating Pressure -100 kPa
