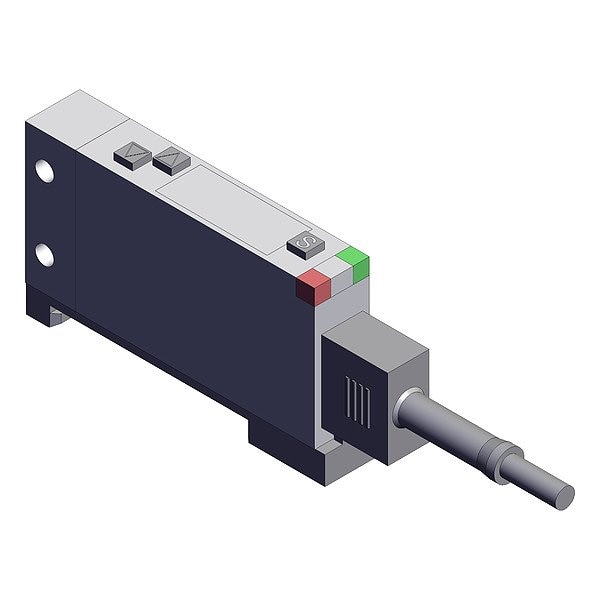

Low Profile Dig Pres Switch
Mfr # ZSE10F-M5-B-GR
Zoro # G321916070
product price:Â
$
108.99
/ea
Free Shipping & Returns
Key Features
Vacuum Cup Port Size
5 mm
Minimum Vacuum Pressure
-101 kPa
Overall Depth
25 mm
Lead Length
2M
Series
ZSE10(F)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZSE10F-M5-B-GR
- Zoro #
- G321916070
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Vacuum Cup Port Size
- 5 mm
- Overall Depth
- 25 mm
- Lead Length
- 2M
- Port Size
- 5 mm
- Overall Width
- 9.8 mm
Details
- Minimum Vacuum Pressure
- -101 kPa
- Series
- ZSE10(F)
- Weight
- 0.22 lb
- Item
- Pressure Switch
- Voltage
- 12 to 24V DC
- Electrical Connection Type
- 4-Pin Snap-In Plug
- Minimum Operating Temperature
- 0 Degrees C
- Maximum Operating Temperature
- 50 Degrees C
- Signal Pressure - Minimum
- 100 kPa
- Switch Output Type
- 1 PNP Output Open Collector
- Signal Pressure - Maximum
- -101 kPa
- Maximum Vacuum Pressure
- 0 kPa
Description
Pressure Switch, Electrical Connection Type 4-Pin Snap-In Plug, Lead Length 2M, Maximum Operating Temperature 50 Degrees C, Maximum Vacuum Pressure 0 kPa, Minimum Operating Temperature 0 Degrees C, Minimum Vacuum Pressure -101 kPa, Overall Depth 25 mm, Overall Width 9.8 mm, Port Size 5 mm, Series ZSE10(F), Signal Pressure - Maximum -101 kPa, Signal Pressure - Minimum 100 kPa, Switch Output Type 1 PNP Output Open Collector, Vacuum Cup Port Size 5 mm, Voltage 12 to 24V DC, Weight 0.22 lb
