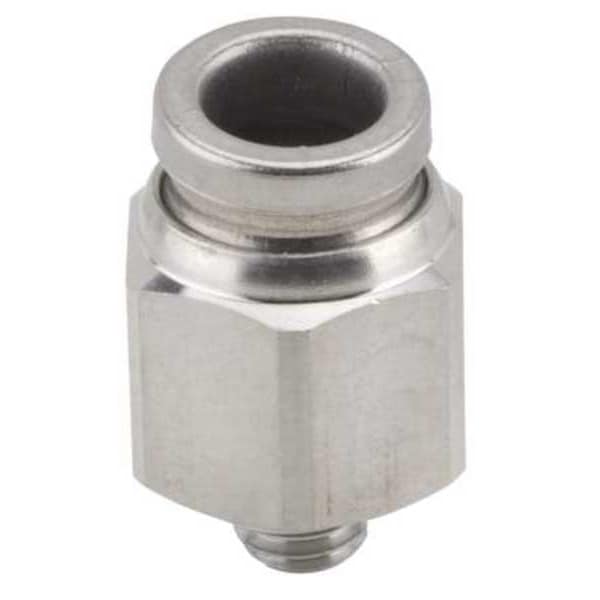

M5 x 51/64" x 1/4" Tube x Male SS Adapter

  • Mfr # KQG2H06-M5

  • Zoro # G4523601

product price:  $19.51
/ea

Key Features

Max. Pressure
435 psi
Fitting Connection Type
Tube x R(PT)
Tube Size
3.2mm
Standards
RoHS
Application
Air, Non-Potable Water, Steam
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KQG2H06-M5
Zoro #
G4523601
UPC #
-
Country of Origin
Japan

Dimensions

Tube Size
3.2mm
Pipe Size
3.2mm x M5 x 0.8
Hex Head Size
12 mm
Overall Length
19 3/32 mm
Fitting Side A Tube Outer Diameter
6 mm
Fitting Side B Pipe Size
5 mm
Fitting Side 2 Tube Outer Diameter
5 mm
Fitting Thread Size
M5x.08
Fitting Side 1 Tube Outer Diameter
6 mm
Wire Rope Length
19 3/32 mm

Details

Item
Push-Fit Adapter Fitting
Max. Pressure
435 psi
Fitting Connection Type
Tube x R(PT)
Standards
RoHS
Application
Air, Non-Potable Water, Steam
Temp. Range
23 Degrees to 302 Degrees F
Specific Pipe Fitting Shape
Connector
Fitting Shape
Straight
Basic Pipe Fitting Material
Metal
Pipe Fitting Connection Type
Tube x R(PT)
Color
Silver
Basic Pipe Fitting Shape
Adapter
Tube Fitting Material
316 Stainless Steel
System of Measurement
Metric
Material Grade
316
Maximum Operating Temperature
302 Degrees F
Maximum Operating Pressure
145 psi
Fitting Material
Stainless Steel
Fitting Side B Connection Type
Male Metric
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
Resistance Properties
Corrosion-Resistant
Fitting Side A Connection Type
Push-to-Connect
Release Type
Button
Minimum Operating Temperature
41 Degrees F
Compatible Tube Material
FEP, Nylon, PFA, Polyolefin, Polyurethane
Fitting Side 2 Connection Type
Metric
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Adapter
Operating Temperature - Maximum
302 Degrees F
Operating Temperature - Minimum
41 Degrees F
Operating Pressure - Maximum
145 psi
Series
KQG2
For Media Type
Air, Non-Potable Water, Gases

Description

The SMC - KQG2H06-M5 is a Push-On Hose Fitting, a specialized product intended to be used in the management of liquid or fluid systems in a variety of industrial and commercial applications. This fitting is intended for attachment and detachment; however, secure connection depends on correct product usage. It can be used to control the direction of flow, change pipe sizes, and attempt to seal the system; effectiveness depends on correct product usage.

Key Features:

  • It falls under the detailed item type "Push-On Hose Fitting," implying that its primary function is to connect and manage hoses in a push-on style for quick setup and removal.
  • The product carries the brand name SMC, a manufacturer known for producing pneumatic control equipment used in industrial automation.
  • It features a part number of KQG2H06-M5, offering a reference for reordering or seeking product-specific support.
  • No additional specifications regarding material, size, or certifications were given for this particular product. Thus, additional product information should be sought from the manufacturer or provider for accurate product utilization.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
