Shop SMC
See all product information

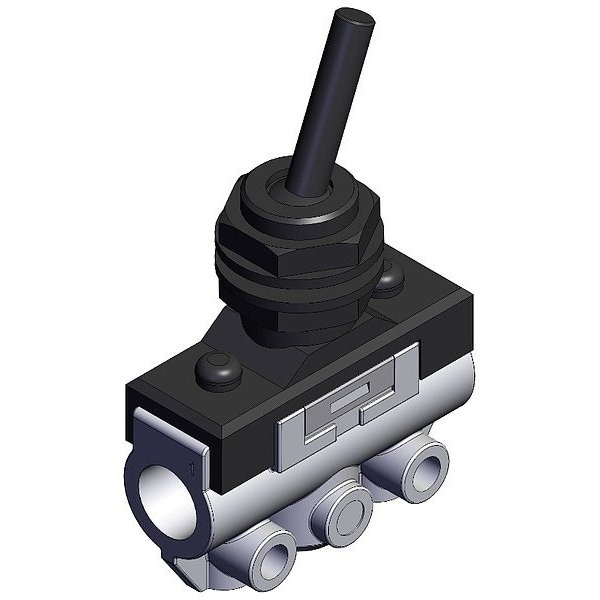

MECHANICAL VALVE
Mfr # VM130-01-08A
Zoro # G715196972
product price:Â $24.99
/eaKey Features
Series
VM100
Overall Height
67 11/16 mm
Overall Length
44 mm
Overall Width
17 mm
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- VM130-01-08A
- Zoro #
- G715196972
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 67 11/16 mm
- Overall Length
- 44 mm
- Overall Width
- 17 mm
- Valve Port Connection Size
- 1/8 in
Details
- Item
- Shuttle Valve
- Series
- VM100
- Body Material
- Aluminum
- Body Style
- Side-Ported
- Product Type
- Manual Air Control Valve
- Operating Temperature - Minimum
- -5 Degrees C
- Lubrication
- Lubrication Not Required
- Coefficient of Volume (Cv)
- 0.1
- Operating Pressure - Maximum
- 1 MPa
- Standards
- RoHS Compliant
- For Media
- Air
- Operating Pressure - Minimum
- -100 kPa
- Operating Temperature - Maximum
- 60 Degrees C
- Number of Ports
- 3
- Actuator Type
- Toggle
- Valve Port Connection Type
- BSPT
Description
Shuttle Valve, Body Material Aluminum, Overall Length 44 mm, Overall Height 67 11/16 mm, Overall Width 17 mm, Series VM100
