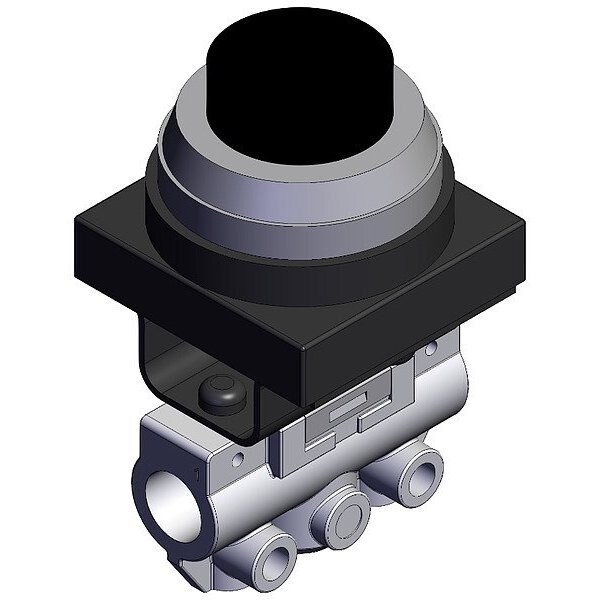

MECHANICAL VALVE
- Mfr # VM130-01-32BA
- Zoro # G515197049
product price:Â
$
25.79
/ea
Key Features
Series
VM100
Overall Height
70 5/8 mm
Overall Length
44 mm
Body Material
Aluminum
Operating Pressure - Minimum
-100 kPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- VM130-01-32BA
- Zoro #
- G515197049
- UPC #
- -
- Country of Origin
- Japan
- Item
- Shuttle Valve
- Series
- VM100
- Body Material
- Aluminum
- Operating Pressure - Minimum
- -100 kPa
- Operating Temperature - Maximum
- 60 Degrees C
- Operating Temperature - Minimum
- -5 Degrees C
- For Media
- Air
- Number of Ports
- 3
- Actuator Color
- Black
- Body Style
- Side-Ported
- Product Type
- Manual Air Control Valve
- Lubrication
- Lubrication Not Required
- Actuator Type
- Button
- Operating Pressure - Maximum
- 1 MPa
- Coefficient of Volume (Cv)
- 0.1
- Standards
- RoHS Compliant
- Valve Port Connection Type
- BSPT
Dimensions
- Overall Height
- 70 5/8 mm
- Overall Length
- 44 mm
- Valve Port Connection Size
- 1/8 in
- Wire Rope Length
- 44 mm
- Length
- 44 mm
Description
Shuttle Valve, Body Material Aluminum, Overall Length 44 mm, Overall Height 70 5/8 mm, Series VM100
