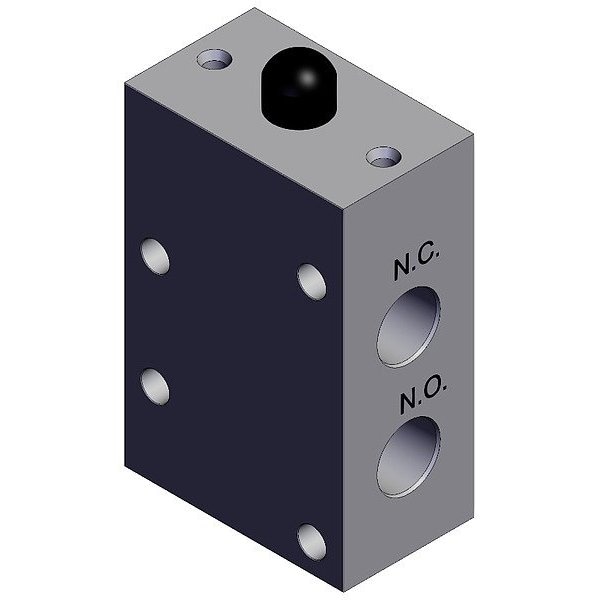

MECHANICAL VALVE
- Mfr # VM430-N01-00
- Zoro # G315191759
product price:Â
$
27.79
/ea
Key Features
Series
VM400
Overall Height
60 1/2 mm
Overall Length
35 mm
Overall Width
21 mm
Body Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VM430-N01-00
- Zoro #
- G315191759
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 60 1/2 mm
- Overall Length
- 35 mm
- Overall Width
- 21 mm
- Valve Port Connection Size
- 1/8 in
- Wire Rope Length
- 35 mm
- Length
- 35 mm
Details
- Item
- Shuttle Valve
- Series
- VM400
- Body Material
- Aluminum
- Actuator Type
- Plunger
- Operating Temperature - Maximum
- 60 Degrees C
- Coefficient of Volume (Cv)
- 0.38
- Valve Type
- Poppet
- Number of Ports
- 3
- Operating Temperature - Minimum
- -5 Degrees C
- Lubrication
- Lubrication Not Required
- Standards
- RoHS Compliant
- Operating Pressure - Maximum
- 1 MPa
- Valve Action
- Normally Open/Normally Closed
- Operating Pressure - Minimum
- -100 kPa
- Product Type
- Manual Air Control Valve
- For Media
- Air
- Valve Port Connection Type
- NPT
Description
Shuttle Valve, Body Material Aluminum, Overall Length 35 mm, Overall Height 60 1/2 mm, Overall Width 21 mm, Series VM400
