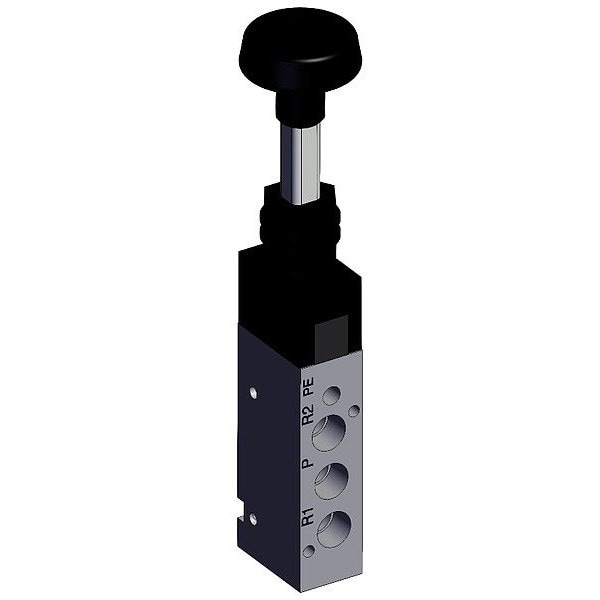

MECHANICAL VALVE
Mfr # VZM550-01-37
Zoro # G315197041
product price: $71.59
/eaKey Features
Series
VZM500
Overall Height
146 3/8 mm
Overall Length
28 mm
Overall Width
30 mm
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
VZM550-01-37
Zoro #
G315197041
UPC #
-
Country of Origin
Japan
Dimensions
Overall Height
146 3/8 mm
Overall Length
28 mm
Overall Width
30 mm
Valve Port Connection Size
1/8 in
Details
Item
Shuttle Valve
Series
VZM500
Body Material
Aluminum
Coefficient of Volume (Cv)
0.6
Lubrication
Lubrication Not Required
Operating Pressure - Maximum
0.7 MPa
Standards
RoHS Compliant
Operating Pressure - Minimum
0.15 MPa
Product Type
Manual Air Control Valve
For Media
Air, Inert Gas
Number of Ports
5
Operating Temperature - Maximum
60 Degrees C
Operating Temperature - Minimum
-5 Degrees C
Return Action
Spring Return
Valve Port Connection Type
BSPT
Actuator Type
Knob
Description
Shuttle Valve, Body Material Aluminum, Overall Length 28 mm, Overall Height 146 3/8 mm, Overall Width 30 mm, Series VZM500
