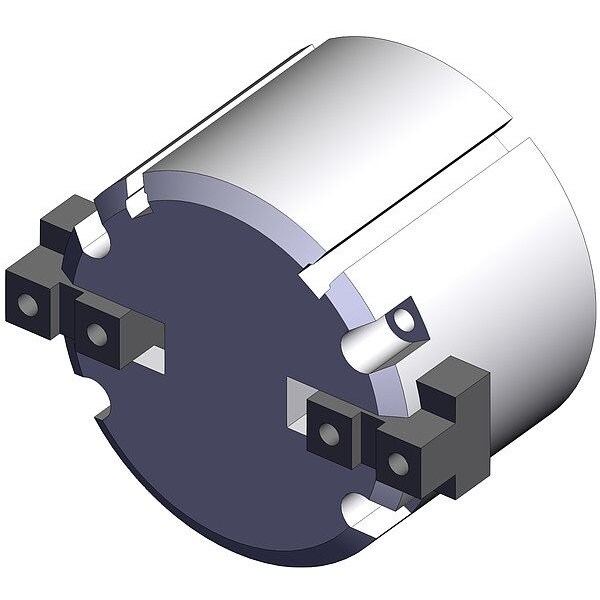

MHS, Parallel Style Air Gripper
Mfr # MHS2-63D
Zoro # G514534159
product price:Â $540.99
/ea
Free Shipping & Returns
Key Features
Open Width
46 mm
Overall Height
66 mm
Stroke Length
18 mm
Series
MHS2
Overall Width
86 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MHS2-63D
- Zoro #
- G514534159
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Open Width
- 46 mm
- Overall Height
- 66 mm
- Stroke Length
- 18 mm
- Overall Width
- 86 mm
- Overall Length
- 86 mm
- Bore Diameter
- 63 mm
- Wire Rope Length
- 86 mm
Details
- Item
- Parallel Gripper
- Series
- MHS2
- Standards
- RoHS Compliant
- Repeatability
- +/-0.01 mm
- Finger Material
- Carbon Steel
- Minimum Operating Temperature
- 14 Degrees F
- Maximum Operating Pressure
- 87 psi
- System of Measurement
- Metric
- Body Material
- Aluminum
- Weight
- 2.27 lb
- Maximum Operating Temperature
- 140 Degrees F
- Minimum Operating Pressure
- 15 psi
- Body Material Finish
- Hard Anodized
- Seal Material
- Nitrile
Description
Parallel Gripper, Series MHS2, Open Width 46 mm, Stroke Length 18 mm, Maximum Operating Pressure 87 psi, Minimum Operating Pressure 15 psi, Overall Length 86 mm, Overall Width 86 mm, Overall Height 66 mm, Body Material Aluminum, Finger Material Carbon Steel, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 2.27 lb, Body Material Finish Hard Anodized, System of Measurement Metric, Seal Material Nitrile
