Shop SMC

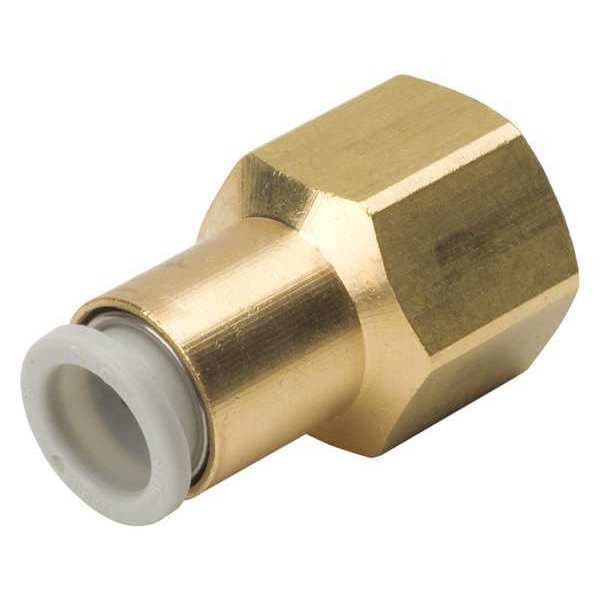

Push-Fit Adapter Fitting, Push-to-Connect x FBSPT, 4mm Tube OD, 1/8 in Pipe Size, Brass

  • Mfr # KQ2F04-01A

  • Zoro # G5001726

product price:
$
3.35
/ea

Key Features

Material
Brass
Max. Pressure
145 psi
Connection Type
Push-to-Connect x FBSPT
Tube Size
4mm
Standards
JIS B0203, RoHS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
KQ2F04-01A
Zoro #
G5001726
UPC #
-
Country of Origin
Singapore
Item
Push-Fit Adapter Fitting
Material
Brass
Max. Pressure
145 psi
Connection Type
Push-to-Connect x FBSPT
Standards
JIS B0203, RoHS
Application
Air, Non-Potable Water
Temp. Range
23 Degrees to 140 Degrees F
Fitting Shape
Straight
Fittings Sub-Category
Adapters
Body Material
Polybutylene Terephthalate
Color
Brass
System of Measurement
Imperial/Metric
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Release Type
Button
Compatible Tube Material
FEP, Nylon, PFA, Polyurethane
Fitting Side B Connection Type
FBSPT
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
41 Degrees F
Maximum Operating Pressure
145 psi
Fitting Side A Connection Type
Push-to-Connect
Fitting Material
Brass
Fitting Side 2 Connection Type
BSPT
For Media Type
Air, Non-Potable Water
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Adapter
Operating Pressure - Maximum
145 psi
Operating Temperature - Maximum
140 Degrees F
Series
KQ2F
Operating Temperature - Minimum
41 Degrees F

Description

The SMC - KQ2F04-01A is a specified type of Push On Hose Fitting. An integral component in an extensive array of commercial and industrial applications, its function serves to connect, control, or adapt the direction of air or fluid within a system. The one-touch technology within its design makes tube connections quicker and easier due to its release ring that supports tube installation and removal without the need for special tools.

Key Features:

  • Connection type: Female with 1/8"" NPT thread size - The thread size refers to the diameter of the fittings compatible with this product.
  • Body material: Polybutene terephthalate (PBT) and brass - These materials are chosen for their durability and resistance to various chemical substances.
  • Applicable tube material: Nylon and polyurethane - This detail informs users of the compatible tube materials with which this fitting can be utilized efficiently.
  • Applicable tube outer diameter: 4mm - The optimal diameter of a tube that can be used with this hose fitting.
  • Operation pressure range: -100kPa to 1MPa - This range defines the minimal and maximal pressure limits within which the product can perform optimally.
  • Operational temperature range: 0 to 60 degrees Celsius - Indicates the minimum and maximum temperatures under which the hose fitting can operate effectively.
  • One-touch design: Allows for installation and removal of tubes without the need for special tools, some difficulty may occur depending on tube material and individual user skill.
