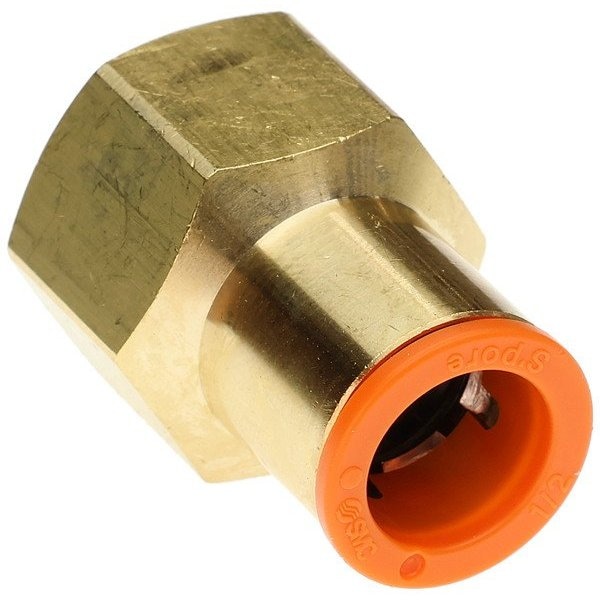

Push-Fit Adapter Fitting, Push-to-Connect x FNPT, 1/2 in Tube OD, 1/2 in Pipe Size, Brass

  • Mfr # KQ2F13-37A

  • Zoro # G5001717


product price:  $6.19
/ea

Key Features

Material
Brass
Max. Pressure
145 psi
Connection Type
Push-to-Connect x FNPT
Tube Size
1/2 in
Standards
ANSI/ASME1.20.1, RoHS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KQ2F13-37A
Zoro #
G5001717
UPC #
-
Country of Origin
Singapore

Dimensions

Tube Size
1/2 in
Pipe Size
1/2 in
Hex Head Size
15/16 in
Overall Length
35 11/16 mm
Fitting Side A Tube Outer Diameter
1/2 in
Fitting Side B Pipe Size
1/2 in
Fitting Side 1 Tube Outer Diameter
1/2 in
Fitting Thread Size
1/2"
Fitting Side 2 Pipe Size
1/2 in

Details

Item
Push-Fit Adapter Fitting
Material
Brass
Max. Pressure
145 psi
Connection Type
Push-to-Connect x FNPT
Standards
ANSI/ASME1.20.1, RoHS
Application
Air, Non-Potable Water
Temp. Range
23 Degrees to 140 Degrees F
Fitting Shape
Straight
Body Material
Brass
Fittings Sub-Category
Adapters
Color
Brass
Release Type
Button
Fitting Material
Brass
Fitting Side B Connection Type
FNPT
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side A Connection Type
Push-to-Connect
Maximum Operating Pressure
145 psi
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
41 Degrees F
System of Measurement
Imperial
Compatible Tube Material
FEP, Nylon, PFA, Polyurethane, Soft Nylon
Fitting Side 2 Connection Type
FNPT
Series
KQ2F
Operating Temperature - Maximum
140 Degrees F
For Media Type
Air, Non-Potable Water
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Adapter
Operating Pressure - Maximum
145 psi
Operating Temperature - Minimum
41 Degrees F

Description

The SMC - KQ2F13-37A, described as having specialized utility, is a notable piece in the category of "Push On Hose Fittings". It finds its primary use in commercial and industrial settings, serving the purpose of connecting and securing hoses in numerous systems. The product is designed to be integrated into machinery or systems.

Key Features:

  • The product falls under the 'Push On Hose Fittings' category, aligning with installations that demand such unique connections.
  • The fitting's specific model number is KQ2F13-37A, which sets it apart from SMC brand's vast offerings.
  • It is a product of the manufacturer, SMC, which produces a range of industrial and commercial tools and supplies.
  • The fitting is intended for usage in industrial systems. Its ability to resist high pressure and harsh conditions is contingent upon the overall system parameters and usage circumstances.

It is important to note that specifics such as product dimensions, material, color, and other physical attributes have not been disclosed. Thus, you are advised to consult the manufacturer's specifications or directly get in touch with them for such information.
