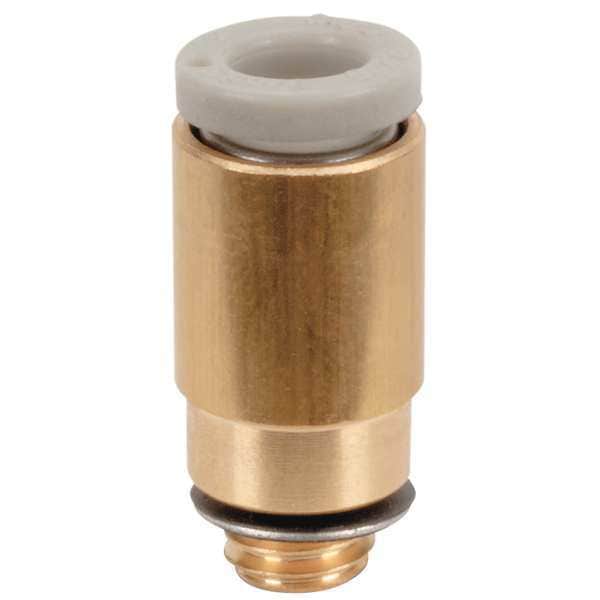

Push-Fit Adapter Fitting, Push-to-Connect x Male Metric, 4mm Tube OD, 6 mm Pipe Size, Plastic

  • Mfr # KQ2S04-M6A

  • Zoro # G4999565

product price:
$
1.99
/ea

Key Features

Material
Plastic
Max. Pressure
145 psi
Connection Type
Push-to-Connect x Male Metric
Tube Size
4mm
Standards
JIS B0203, RoHS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KQ2S04-M6A
Zoro #
G4999565
UPC #
-
Country of Origin
Singapore

Dimensions

Tube Size
4mm
Pipe Size
6 mm
Hex Head Size
3 mm
Overall Length
18 1/2 mm
Fitting Side A Tube Outer Diameter
4 mm
Fitting Side B Pipe Size
6 mm
Fitting Thread Size
M6x1.0
Fitting Side 1 Tube Outer Diameter
4 mm
Fitting Side 2 Pipe Size
6 mm
Wire Rope Length
18 1/2 mm
Length
18 1/2 mm

Details

Item
Push-Fit Adapter Fitting
Material
Plastic
Max. Pressure
145 psi
Connection Type
Push-to-Connect x Male Metric
Standards
JIS B0203, RoHS
Application
Air, Non-Potable Water
Temp. Range
23 Degrees to 140 Degrees F
Fitting Shape
Hex Adapter
Body Material
Brass
Color
Brass
Fittings Sub-Category
Adapters
Release Type
Button
System of Measurement
Metric
Compatible Tube Material
FEP, Nylon, PFA, Polyurethane
Minimum Operating Temperature
41 Degrees F
Fitting Side A Connection Type
Push-to-Connect
Maximum Operating Pressure
145 psi
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side B Connection Type
Male Metric
Maximum Operating Temperature
140 Degrees F
Fitting Material
Brass
Fitting Side 1 Connection Type
Push-to-Connect
Operating Pressure - Maximum
145 psi
Operating Temperature - Minimum
41 Degrees F
Series
KQ2S
Fitting Side 2 Connection Type
Metric
For Media Type
Air, Non-Potable Water
Operating Temperature - Maximum
140 Degrees F
Connector Type
Adapter

Description

The SMC - KQ2S04-M6A is a type of Push-On Hose Fitting, suitable for assembly and disassembly of piping within the product's specified capabilities. Manufactured with attention to standards, this fitting is intended for the secure attachment of tubes and hoses within its defined range of compatibility. It aims to maintain flow consistency within its designated pressure and temperature tolerances. Product life and performance depend on usage within these specified ranges.

Key Features:

  • Suitable for use in multiple configurations, indicating flexibility in multiple industrial applications.
  • Constructed of materials intended to withstand use within the product's designated parameters.
  • Equipped with a straightforward attachment mechanism designed for installation and release within its specified guidelines.
  • Designed to resist pressure and temperature within its specified ranges.
  • Compact in size, contributing to space efficiency and easy storage.
  • Designed with a feature intended to mitigate leakage when used appropriately.
  • Designed to be compatible with a range of hoses and tubes specified by the manufacturer.
