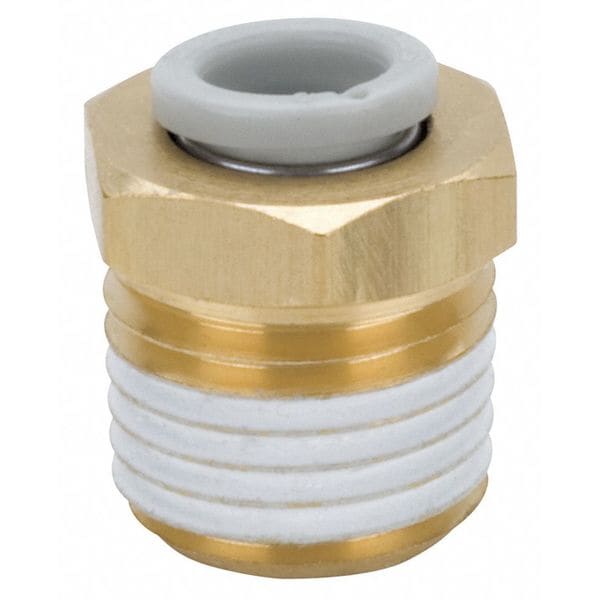

Push-Fit Adapter Fitting, Push-to-Connect x MBSPT, 4mm Tube OD, 1/8 in Pipe Size, Brass
Mfr # KQ2H04-01AS
Zoro # G5000947
product price:
$
1.45
/ea
Key Features
Material
Brass
Max. Pressure
145 psi
Connection Type
Push-to-Connect x MBSPT
Tube Size
4mm
Standards
JIS B0203, RoHS
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KQ2H04-01AS
- Zoro #
- G5000947
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Tube Size
- 4mm
- Pipe Size
- 1/8 in
- Hex Head Size
- 10 mm
- Overall Length
- 14 5/16 mm
- Fitting Side A Tube Outer Diameter
- 4 mm
- Fitting Side B Pipe Size
- 1/8 in
- Fitting Thread Size
- 1/8"
- Fitting Side 1 Tube Outer Diameter
- 4 mm
- Fitting Side 2 Pipe Size
- 1/8 in
- Wire Rope Length
- 14 5/16 mm
- Length
- 14 5/16 mm
Description
The SMC - KQ2H04-01AS is a Push On Hose Fitting, crafted for hose attachment in line with industry norms. The design of its structure facilitates a connection via the push mechanism. The robust design of this specific fitting is built with materials known for their resistance to wear in multiple conditions. This compact fitting has a small form factor that may facilitate installation and fit in confined spaces, making it versatile for a variety of hose-related applications.
Key Features:
- Pneumatic Connection Type: Used in systems with compressed air-driven machinery.
- Port Size: 1/8" - The size of entry or exit through which the hose or tube media will flow.
- Body Material: PBT (Polybutylene Terephthalate) - A type of polyester noted for its mechanical properties and heat-resistance.
- Connection Thread Size: R1/8 - Details of the thread on the fitting for secure linkage to the corresponding piece of equipment.
- Tube Outside Diameter (OD): ø 4mm – The measure of the cylinder for connection, ensuring compatibility and a secure fit.
- Maximum Operating Pressure: 1.0 MPa - The maximum pressure the fitting can handle, an important safety characteristic to consider in industrial operations.
- Detailed Line Type: Push on – It refers to the mechanism through which the fitting is attached, showcasing its assembly and disassembly process.
