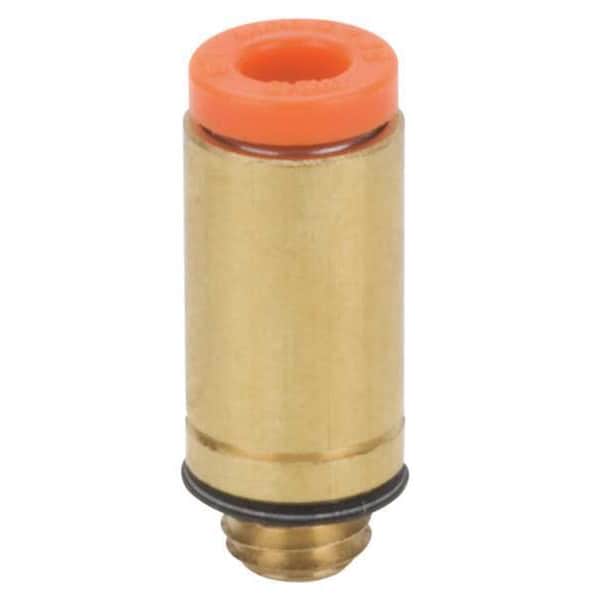

Push-Fit Adapter Fitting, Push-to-Connect x MUNF, 1/4 in Tube OD, 10-32 Pipe Size, Plastic

  • Mfr # KQ2S07-32A

  • Zoro # G6114622


product price: $3.39
/ea

Key Features

Material
Plastic
Max. Pressure
145 psi
Connection Type
Push-to-Connect x MUNF
Application
Air, Non-Potable Water
Tube Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KQ2S07-32A
Zoro #
G6114622
UPC #
-
Country of Origin
Singapore

Dimensions

Tube Size
1/4 in
Pipe Size
10-32
Hex Head Size
2 mm
Overall Length
19 mm
Fitting Side A Tube Outer Diameter
1/4 in
Fitting Side 2 Pipe Size
1/4 in
Fitting Thread Size
#10-32
Fitting Side 1 Tube Outer Diameter
1/4 in

Details

Item
Push-Fit Adapter Fitting
Material
Plastic
Max. Pressure
145 psi
Connection Type
Push-to-Connect x MUNF
Application
Air, Non-Potable Water
Standards
JIS B0208, RoHS
Temp. Range
23 Degrees to 140 Degrees F
Fitting Shape
Hex Adapter
Fittings Sub-Category
Adapters
Color
White
Body Material
Polybutylene Terephthalate
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Maximum Operating Pressure
145 psi
Compatible Tube Material
FEP, Nylon, PFA, Polyurethane, Soft Nylon
Fitting Material
Brass
Fitting Side B Connection Type
MUNF
Release Type
Button
Minimum Operating Temperature
41 Degrees F
Fitting Side A Connection Type
Push-to-Connect
Maximum Operating Temperature
140 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Maximum
140 Degrees F
Operating Pressure - Maximum
145 psi
Series
KQ2S
Connector Type
Adapter
Operating Temperature - Minimum
41 Degrees F
For Media Type
Air, Non-Potable Water
Fitting Side 2 Connection Type
MUNF

Description

The SMC - KQ2S07-32A is categorized under "Push On Hose Fittings". It is a type of granular item designed to provide connection points for fluid or air transfer lines. These hose fittings can be used across a range of general industrial and manufacturing processes, assisting in connecting various components to a system or allowing for the easy swapping of lines to adjust to task-specific needs.

Key Features:

  • Listed as a Push On Hose Fitting, indicating that it connects lines simply by pushing on, eliminating the need for additional tools or components.
  • Classed as a granular type item, it's primarily used for connecting parts in a fluid or air transfer line system.
  • Suited for use in industrial or manufacturing settings, playing a versatile role in a variety of processes.
  • Facilitates the customization and adaptation of transfer lines depending on operational or task-related needs.
  • Facilitates connections, but does not guarantee the prevention of line disconnection or fluid leakage.
