Shop SMC
See all product information

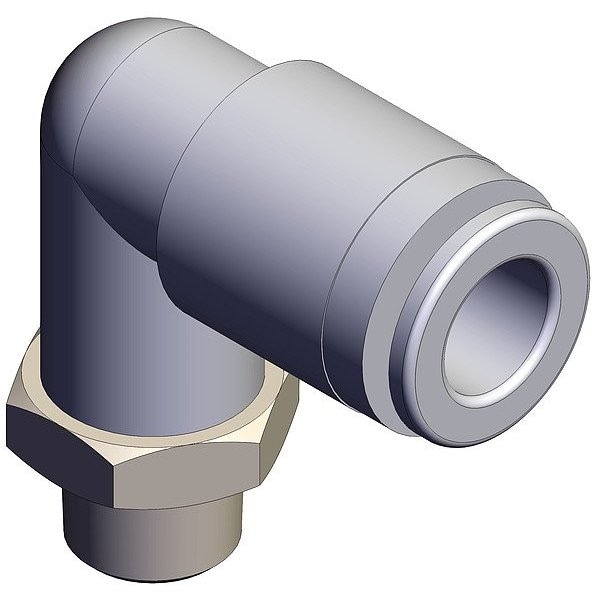

Push-Fit Elbow, Elbow
Mfr # KPL08-01
Zoro # G616245700
product price:Â $5.39
/ea
Sold in multiples of 2 for $10.78
Key Features
Standards
RoHS
Application
Medical, Vacuum
Fitting Shape
Elbow
Series
KP
Center-to-End 2 Length
26 19/32 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
KPL08-01
Zoro #
G616245700
UPC #
-
Country of Origin
Singapore
Dimensions
Center-to-End 2 Length
26 19/32 mm
Center-to-End 1 Length
25 5/16 mm
Fitting Side 1 Tube Outer Diameter
8 mm
Fitting Thread Size
1/8
Fitting Side 2 Pipe Size
1/8 in
Overall Length
14 mm
Details
Item
Fitting, Male Elbow
Standards
RoHS
Application
Medical, Vacuum
Fitting Shape
Elbow
Series
KP
Operating Temperature - Maximum
140 Degrees F
Release Type
Button
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Union
Compatible Tube Material
PFA, Polyolefin, Polyurethane
For Media Type
Air, Gases, Non-Potable Water
Operating Pressure - Maximum
1 MPa
Operating Temperature - Minimum
-4 Degrees F
Fitting Material
Polypropylene
Fitting Features
Swivel
Color
White
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side 2 Connection Type
BSPT
Description
Push-Fit Elbow, Application Medical, Vacuum, Fitting Material Polypropylene, Fitting Thread Size 1/8, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 14 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, System of Measurement Not Applicable
