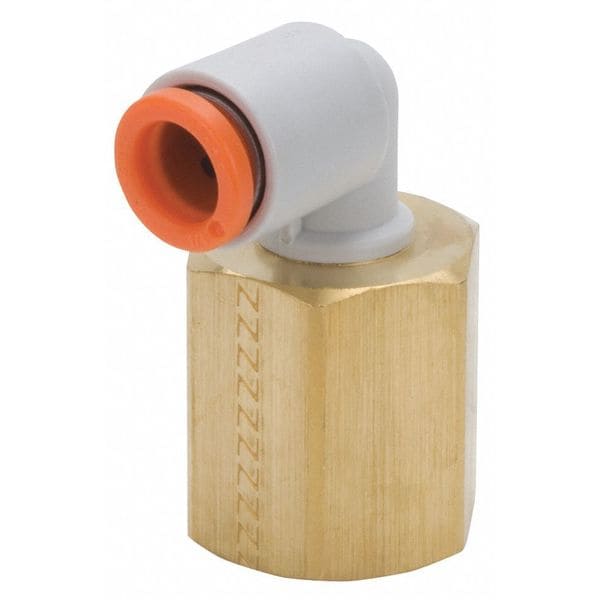

Push-Fit Elbow Fitting, Push-to-Connect x Female Metric, 4mm Tube OD, 5 mm Pipe Size, Plastic
Mfr # KQ2LF04-M5A
Zoro # G5001902
product price:Â
$
2.69
/ea
Key Features
Material
Plastic
Max. Pressure
145 psi
Connection Type
Push-to-Connect x Female Metric
Tube Size
4mm
Standards
JIS B0203, RoHS
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KQ2LF04-M5A
- Zoro #
- G5001902
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Tube Size
- 4mm
- Pipe Size
- 5 mm
- Hex Head Size
- 8 mm
- Overall Length
- 15 5/16 mm
- Fitting Side A Tube Outer Diameter
- 4 mm
- Fitting Side B Pipe Size
- 5 mm
- Fitting Side 2 Pipe Size
- 5 mm
- Fitting Side 1 Tube Outer Diameter
- 4 mm
- Fitting Thread Size
- M5x.08
- Wire Rope Length
- 15 5/16 mm
- Length
- 15 5/16 mm
Description
Push-Fit Elbow Fitting, Application Air, Non-Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Female Metric, Fitting Side B Pipe Size 5 mm, Fitting Side A Tube Outer Diameter 4 mm, Fitting Material Brass, Fitting Thread Size M5x.08, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 140 Degrees F
