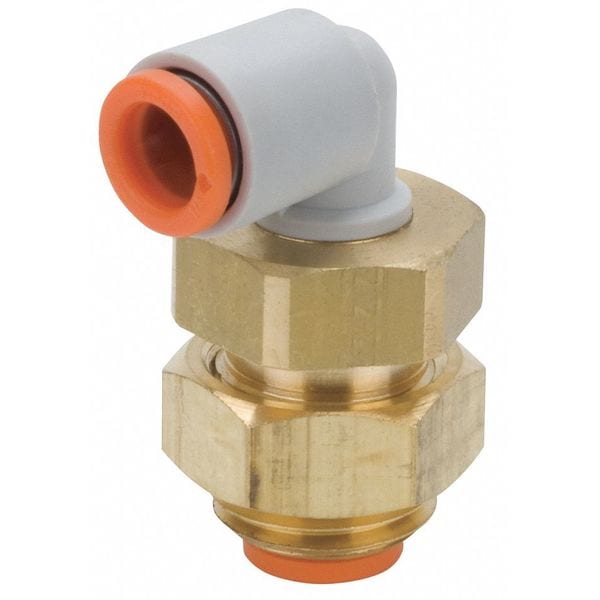

Push-Fit Elbow Fitting, Push-to-Connect x Push-to-Connect, 5/32 in Tube OD, 1/2-20 Pipe Size

  • Mfr # KQ2LE03-00A
  • Zoro # G5047384
product price:
$
6.79
/ea

Key Features

Material
Plastic
Max. Pressure
145 psi
Connection Type
Push-to-Connect x Push-to-Connect
Tube Size
5/32 in
Standards
RoHS
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KQ2LE03-00A
Zoro #
G5047384
UPC #
-
Country of Origin
Singapore

Dimensions

Tube Size
5/32 in
Pipe Size
1/2-20
Hex Head Size
11/16 in
Overall Length
28 1/2 mm
Fitting Side A Tube Outer Diameter
5/32 in
Fitting Side B Tube Outer Diameter
5/32 in
Fitting Side 1 Tube Outer Diameter
5/32 in
Fitting Side 2 Tube Outer Diameter
5/32 in
Wire Rope Length
28 1/2 mm
Length
28 1/2 mm

Details

Item
Push-Fit Elbow Fitting
Material
Plastic
Max. Pressure
145 psi
Connection Type
Push-to-Connect x Push-to-Connect
Standards
RoHS
Application
Air, Non-Potable Water
Temp. Range
23 Degrees to 140 Degrees F
Fitting Shape
90 Degrees Union Elbow
Body Material
Polybutylene Terephthalate
Fittings Sub-Category
Elbows
Color
White
Release Type
Button
System of Measurement
Imperial
Maximum Operating Temperature
140 Degrees F
Fitting Material
Brass
Fitting Side B Connection Type
Push-to-Connect
Fitting Side A Connection Type
Push-to-Connect
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Compatible Tube Material
FEP, Nylon, PFA, Polyurethane
Maximum Operating Pressure
145 psi
Minimum Operating Temperature
41 Degrees F
Fitting Side 2 Connection Type
Push-to-Connect
Operating Temperature - Maximum
140 Degrees F
For Media Type
Air, Non-Potable Water
Series
KQ2L
Connector Type
Adapter, Union
Fitting Side 1 Connection Type
Push-to-Connect
Operating Pressure - Maximum
145 psi
Operating Temperature - Minimum
41 Degrees F

Description

The SMC - KQ2LE03-00A is a push-on hose fitting that provides push-on hose connection, based on its design specifics. Made by the widely-recognized manufacturer SMC, this fitting can be used in applications involving air or water lines, as defined by its design characteristics. Its unique design allows for reliable couple-and-release functionality while it is designed to provide a seal, with system performance contingent upon various conditions. This item has been engineered meticulously to cater to connectivity requirements in industrial and commercial settings.

Key Features:

  • The SMC - KQ2LE03-00A is a push-on hose fitting designed to connect, control, and adapt the flow in air or water lines.
  • Manufactured by SMC, a leading firm in pneumatics, known for their stringent quality control, ensuring product reliability.
  • Its design facilitates quick and easy push-on connection, promoting easy installation or removal with minimal downtime.
  • It is designed for a sealing purpose, with performance including leak prevention based on varying conditions.
  • Designed for potential application in commercial and industrial settings, as per its specification.
