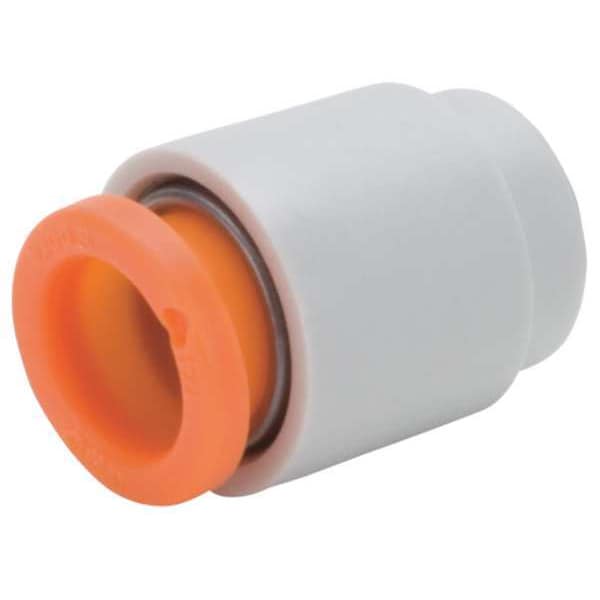

Push-Fit Fitting Cap, Tube, 6mm Tube OD, Plastic

  • Mfr # KQ2C06-00A

  • Zoro # G5000502

product price:  $1.65
/ea

Key Features

Material
Plastic
Max. Pressure
145 psi
Connection Type
Tube
Fitting Connection Type
Push-to-Connect
Tube Size
6mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KQ2C06-00A
Zoro #
G5000502
UPC #
-
Country of Origin
Singapore

Dimensions

Tube Size
6mm
Overall Length
14 19/32 mm
Fitting Tube Size Outer Diameter
6 mm
Wire Rope Length
14 19/32 mm

Details

Item
Push-Fit Cap
Material
Plastic
Max. Pressure
145 psi
Connection Type
Tube
Fitting Connection Type
Push-to-Connect
Standards
RoHS
Application
Air
Temp. Range
23 Degrees to 140 Degrees F
Fitting Shape
Cap
Fittings Sub-Category
Caps
Color
White
Body Material
Polybutylene Terephthalate
Maximum Operating Temperature
140 Degrees F
System of Measurement
Metric
Minimum Operating Temperature
32 Degrees F
Maximum Operating Pressure
145 psi
Fitting Material
Polybutylene Terephthalate
Compatible Tube Material
PBT
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
For Media Type
Air
Operating Temperature - Minimum
32 Degrees F
Connector Type
Coupling
Operating Pressure - Maximum
1 MPa
Operating Temperature - Maximum
140 Degrees F

Description

The SMC - KQ2C06-00A is a push-on hose fitting for connecting sections of pipe or tube, according to manufacturer's instructions. Made from specific materials specified by the manufacturer, this tool is designed to be used within its specified pressure ranges. Its primary function is to facilitate fluid or air passage between two sections of tubing or piping. It is designed to be used in industrial environments as specified by the manufacturer.

Key Features:

  • -Push-on hose fitting: This feature ensures a convenient connection between two hose sections. The fitting simply pushes onto the pipe end, creating a leak-free seal.
  • -Design and materials: The fitting's construction from specific materials as specified by the manufacturer. Its useful life and resistance to wear and tear depends on regular maintenance and the specific operating conditions.
  • -Functionality: The device is designed to help in the passage of liquid or air within the manufacturer’s specified performance parameters, aiding in providing a flow within the system when correctly installed and maintained.
  • -Suitability: Intended for use in industrial applications as specified by the manufacturer.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
