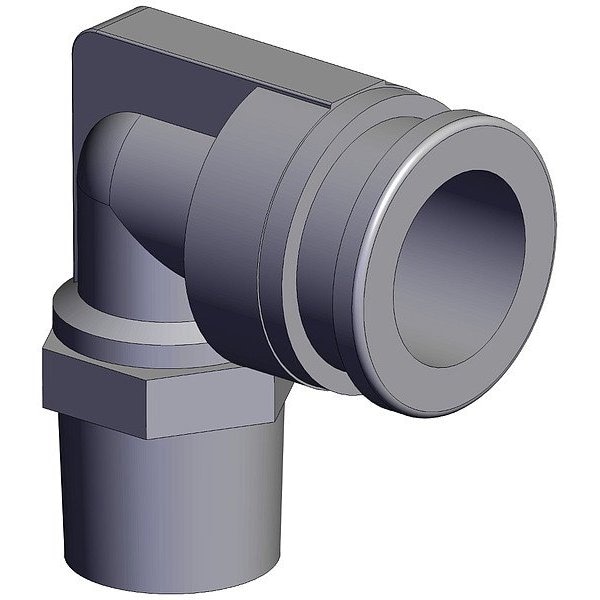

Push-Fit Fitting, Elbow
- Mfr # KQG2L12-02S
- Zoro # G416244866
product price:Â
$
85.49
/ea
Key Features
Standards
RoHS
Fitting Shape
Elbow
Fitting Thread Size
1/4"
Release Type
Button
Operating Temperature - Minimum
23 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- KQG2L12-02S
- Zoro #
- G416244866
- UPC #
- -
- Country of Origin
- Japan
- Item
- Push-Fit Fitting
- Standards
- RoHS
- Fitting Shape
- Elbow
- Release Type
- Button
- Operating Temperature - Minimum
- 23 Degrees F
- Material Grade
- 316
- Compatible Tube Material
- FEP, Nylon, PFA, Polyolefin, Polyurethane
- Series
- KQG2
- Resistance Properties
- Corrosion-Resistant
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Material
- Stainless Steel
- Connector Type
- Union
- For Media Type
- Air, Gases
- Operating Pressure - Maximum
- 1 MPa
- Operating Temperature - Maximum
- 302 Degrees F
- Fitting Features
- Swivel
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Fitting Side 2 Connection Type
- BSPT
- Color
- Stainless Steel 316
- Application
- Pneumatics
- Wire Color
- Stainless Steel 316
Dimensions
- Fitting Thread Size
- 1/4"
- Fitting Side 1 Tube Outer Diameter
- 12 mm
- Center-to-End 1 Length
- 22 19/32 mm
- Fitting Side 2 Pipe Size
- 1/4 in
- Overall Length
- 18 11/16 mm
- Wire Rope Length
- 18 11/16 mm
- Length
- 18 11/16 mm
Description
Push-Fit Fitting, Application Pneumatics, Fitting Material Stainless Steel, Fitting Thread Size 1/4 In., Material Grade 316, Color Stainless Steel 316, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 18 11/16 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material FEP, Nylon, PFA, Polyolefin, Polyurethane, Resistance Properties Corrosion-Resistant
