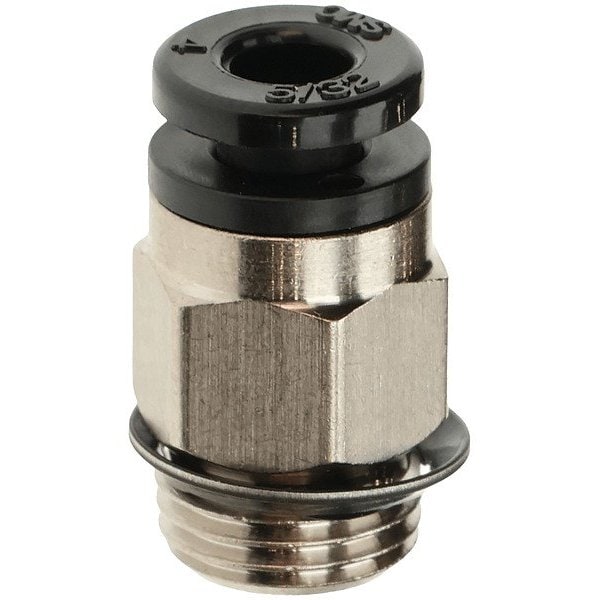

Push-Fit Fitting, Straight
Mfr # KAH04-U01
Zoro # G116245613
product price:Â $4.49
/ea
Sold in multiples of 3 for $13.47
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Overall Length
17 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
KAH04-U01
Zoro #
G116245613
UPC #
-
Country of Origin
Japan
Dimensions
Overall Length
17 mm
Fitting Thread Size
1/8"
Fitting Side 1 Tube Outer Diameter
4 mm
Fitting Side 2 Pipe Size
1/8 in
Details
Item
Push-Fit Fitting
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Fitting Side 1 Connection Type
Push-to-Connect
Series
KA
Connector Type
Union
Resistance Properties
Flame-Resistant
Operating Temperature - Minimum
32 Degrees F
Operating Pressure - Maximum
1 MPa
For Media Type
Air
Finish
Nickel-Plated
Fitting Material
Polybutylene
Compatible Tube Material
PFA, Polyolefin, Polyurethane
Operating Temperature - Maximum
104 Degrees F
Release Type
Button
Fitting Features
Rigid
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side 2 Connection Type
UNF
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 1/8 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 17 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
