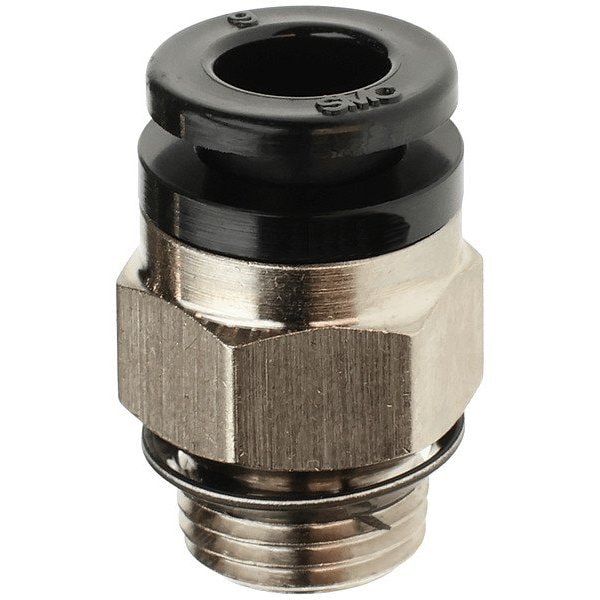

Push-Fit Fitting, Straight
Mfr # KAH06-U01
Zoro # G516245640
product price:Â $4.69
/ea
Sold in multiples of 3 for $14.07
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Overall Length
12 13/16 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
KAH06-U01
Zoro #
G516245640
UPC #
-
Country of Origin
Japan
Dimensions
Overall Length
12 13/16 mm
Fitting Side 1 Tube Outer Diameter
6 mm
Fitting Thread Size
1/8"
Fitting Side 2 Pipe Size
12 mm
Details
Item
Push-Fit Fitting
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Resistance Properties
Flame-Resistant
Fitting Side 1 Connection Type
Push-to-Connect
For Media Type
Air
Compatible Tube Material
PFA, Polyolefin, Polyurethane
Fitting Material
Polybutylene
Operating Pressure - Maximum
1 MPa
Operating Temperature - Maximum
104 Degrees F
Release Type
Button
Operating Temperature - Minimum
32 Degrees F
Series
KA
Finish
Nickel-Plated
Connector Type
Union
Fitting Side 2 Connection Type
UNF
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Features
Rigid
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 1/8 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 12 13/16 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, Resistance Properties Flame-Resistant
