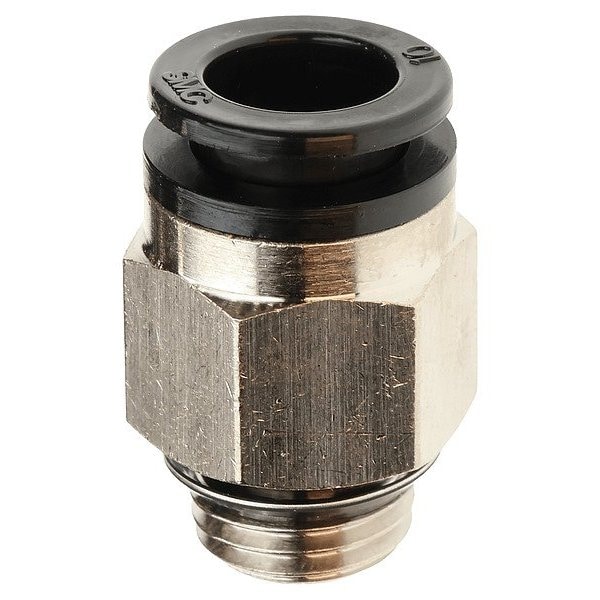

Push-Fit Fitting, Straight
Mfr # KAH10-U02
Zoro # G416245610
product price:Â $6.49
/ea
Sold in multiples of 2 for $12.98
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Overall Length
12 mm
Color
Black
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KAH10-U02
- Zoro #
- G416245610
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 12 mm
- Fitting Side 1 Tube Outer Diameter
- 10 mm
- Fitting Thread Size
- 1/4"
- Fitting Side 2 Pipe Size
- 1/4 in
Details
- Item
- Push-Fit Fitting
- Standards
- RoHS
- Application
- Vacuum
- Fitting Shape
- Straight
- Color
- Black
- Series
- KA
- Release Type
- Button
- For Media Type
- Air
- Compatible Tube Material
- PFA, Polyolefin, Polyurethane
- Resistance Properties
- Flame-Resistant
- Fitting Side 1 Connection Type
- Push-to-Connect
- Finish
- Nickel-Plated
- Connector Type
- Union
- Operating Temperature - Minimum
- 32 Degrees F
- Operating Temperature - Maximum
- 104 Degrees F
- Operating Pressure - Maximum
- 1 MPa
- Fitting Material
- Polybutylene
- Fitting Features
- Rigid
- Fitting Side 2 Connection Type
- UNF
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 1/4 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 12 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
