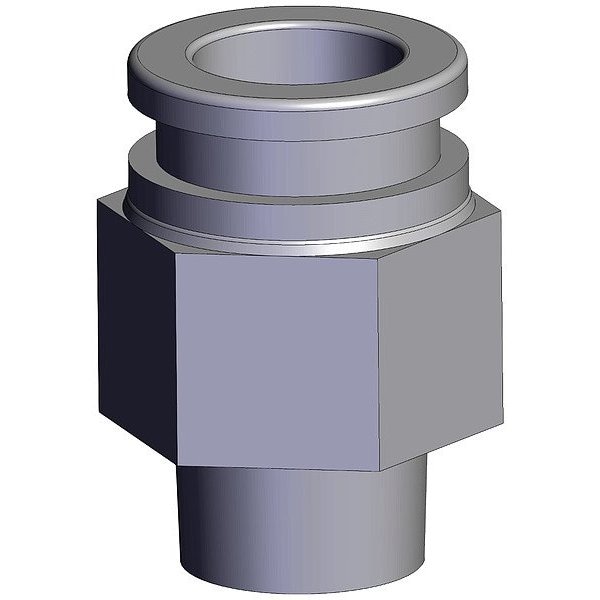

Push-Fit Fitting, Straight
Mfr # KQG2H10-01S
Zoro # G216244899
product price:Â $22.19
/eaKey Features
Standards
RoHS
Fitting Shape
Straight
Overall Length
25 1/2 mm
Fitting Side 1 Tube Outer Diameter
10 mm
Operating Pressure - Maximum
1 MPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
KQG2H10-01S
Zoro #
G216244899
UPC #
-
Country of Origin
Japan
Dimensions
Overall Length
25 1/2 mm
Fitting Side 1 Tube Outer Diameter
10 mm
Fitting Thread Size
1/8"
Details
Item
Fitting, Metal One Touch, SS
Standards
RoHS
Fitting Shape
Straight
Operating Pressure - Maximum
1 MPa
System of Measurement
Metric
Operating Temperature - Minimum
23 Degrees F
Material Grade
316
Fitting Material
Stainless Steel
Operating Temperature - Maximum
302 Degrees F
Release Type
Button
Fitting Side 1 Connection Type
NPT
Compatible Tube Material
FEP, Nylon, PFA, Polyolefin, Polyurethane, Soft Nylon
Series
KQG2
Connector Type
Union
Resistance Properties
Corrosion-Resistant
For Media Type
Air, Gases
Description
Push-Fit Fitting, Application Pneumatics, Fitting Material Stainless Steel, Fitting Thread Size 1/8 In., Material Grade 316, Color Stainless Steel 316, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 17 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material FEP, Nylon, PFA, Polyolefin, Polyurethane, Resistance Properties Corrosion-Resistant
