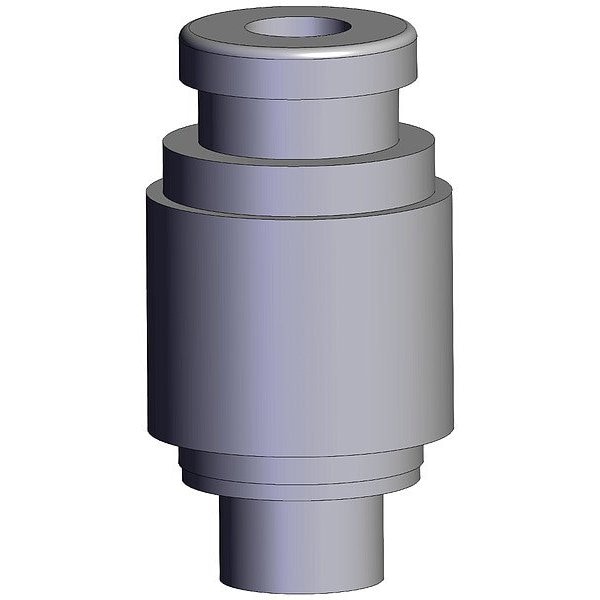

Push-Fit Fitting, Straight
Mfr # KQG2S01-32
Zoro # G716245679
product price:Â $13.39
/eaKey Features
Standards
RoHS
Overall Length
9 mm
Operating Pressure - Maximum
1 MPa
Fitting Material
Stainless Steel
Material Grade
316
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KQG2S01-32
- Zoro #
- G716245679
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 9 mm
- Fitting Thread Size
- #10-32
- Fitting Side 1 Tube Outer Diameter
- 1/8 in
- Fitting Side 2 Pipe Size
- 1/8 in
- Wire Rope Length
- 9 mm
Details
- Item
- Push-Fit Fitting
- Standards
- RoHS
- Operating Pressure - Maximum
- 1 MPa
- Fitting Material
- Stainless Steel
- Material Grade
- 316
- Compatible Tube Material
- FEP, Nylon, PFA, Polyolefin, Polyurethane
- Resistance Properties
- Corrosion-Resistant
- For Media Type
- Air, Gases
- Release Type
- Button
- Operating Temperature - Minimum
- 23 Degrees F
- Fitting Side 1 Connection Type
- Push-to-Connect
- Series
- KQG2
- Operating Temperature - Maximum
- 302 Degrees F
- Fitting Features
- Rigid
- Fitting Shape
- Straight
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Fitting Side 2 Connection Type
- UNF
- Application
- Pneumatics
- Connector Type
- Adapter
Description
Push-Fit Fitting, Application Pneumatics, Fitting Material Stainless Steel, Fitting Thread Size #10-32, Material Grade 316, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 9 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material FEP, Nylon, PFA, Polyolefin, Polyurethane, Resistance Properties Corrosion-Resistant, System of Measurement Not Applicable
