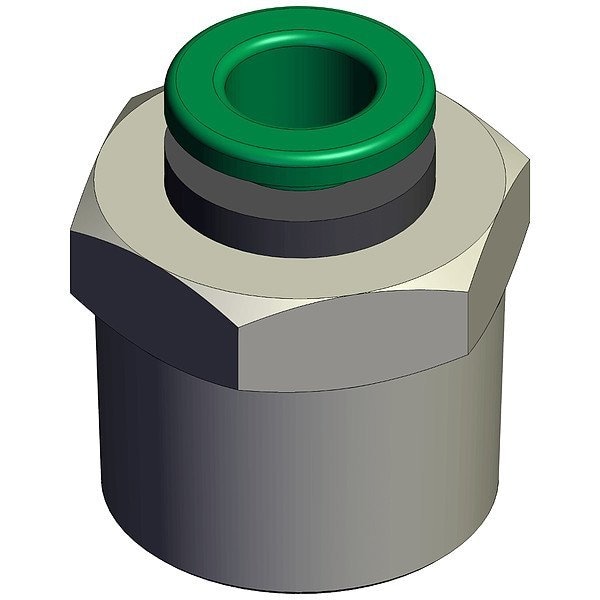

Push-Fit Fitting, Straight
Mfr # KRH07-36S
Zoro # G816245883
product price:Â $6.59
/ea
Sold in multiples of 2 for $13.18
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Release Type
Collet
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KRH07-36S
- Zoro #
- G816245883
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Fitting Side 1 Tube Outer Diameter
- 1/4 in
- Fitting Thread Size
- 3/8
- Overall Length
- 17 15/32 mm
- Fitting Side 2 Pipe Size
- 3/8 in
- Wire Rope Length
- 17 15/32 mm
Details
- Item
- Fitting, Male Connector
- Standards
- RoHS
- Application
- Vacuum
- Fitting Shape
- Straight
- Color
- Black
- Release Type
- Collet
- Resistance Properties
- Flame-Resistant
- Series
- KR
- Operating Temperature - Maximum
- 140 Degrees F
- Operating Pressure - Maximum
- 1 MPa
- Fitting Side 1 Connection Type
- Push-to-Connect
- Operating Temperature - Minimum
- 23 Degrees F
- Fitting Material
- Polybutylene
- Compatible Tube Material
- Polyurethane, Nylon
- For Media Type
- Compressed Air, Non-Potable Water
- Fitting Features
- Rigid
- Connector Type
- Adapter
- Fitting Side 2 Connection Type
- NPT
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 3/8, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 17 15/32 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
