Shop SMC
See all product information

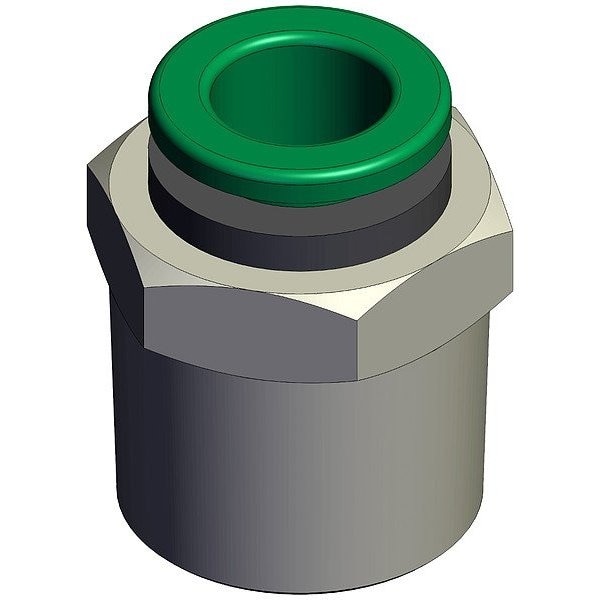

Push-Fit Fitting, Straight
Mfr # KRH08-03S
Zoro # G616245830
product price:Â $3.99
/ea
Sold in multiples of 3 for $11.97
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Overall Length
17 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- KRH08-03S
- Zoro #
- G616245830
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Overall Length
- 17 mm
- Fitting Thread Size
- 3/8"
- Fitting Side 1 Tube Outer Diameter
- 8 mm
- Fitting Side 2 Pipe Size
- 3/8 in
Details
- Item
- Push-Fit Fitting
- Standards
- RoHS
- Application
- Vacuum
- Fitting Shape
- Straight
- Color
- Black
- Release Type
- Collet
- Operating Temperature - Minimum
- 23 Degrees F
- Resistance Properties
- Flame-Resistant
- Operating Pressure - Maximum
- 1 MPa
- Operating Temperature - Maximum
- 140 Degrees F
- Fitting Material
- Polybutylene
- Compatible Tube Material
- Polyurethane, Nylon
- For Media Type
- Compressed Air, Non-Potable Water
- Series
- KR
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Features
- Rigid
- Connector Type
- Adapter
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Fitting Side 2 Connection Type
- BSPT
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 3/8 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 17 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
