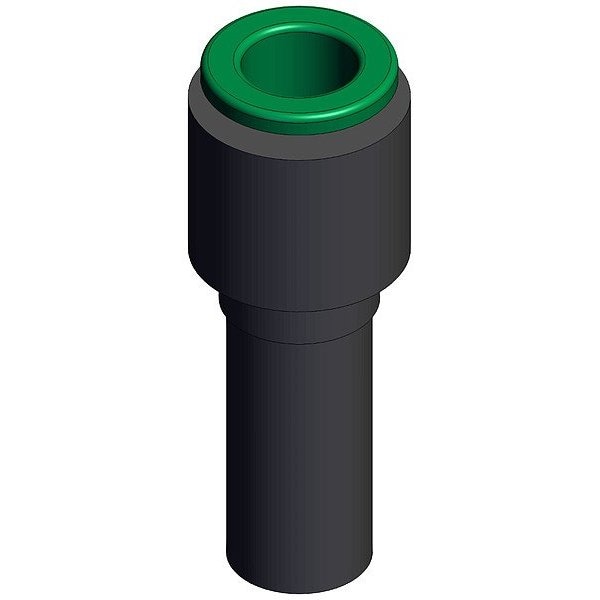

Push-Fit Fitting, Straight

The SMC - KRR08-10 is part of the KR series and falls within the category of "Push On Hose Fittings". Often used in vacuum applications, this fitting is a plug-in reducer made from polybutylene material. It can accept and seal against nylon and polyurethane tube materials. The connector type is classified as "Reducer", providing a convenient connection with another hose or component. This push-on hose fitting presents itself in a black color, not indicative of its practical attributes.

Key Features:

• Compatible with nylon and polyurethane tube materials, indicating operational versatility.
• Features a push-to-connect fitting side 1 connection type for easy hose to component connection.
• Fitting side 1 tube outer diameter is 8mm, to provide efficient connection.
• Suited for media type "Potable water", as per manufacturer specifications.
• Has been used within specified ranges of operating pressure up to 1 MPa, as per manufacturer's testing.
• Can function between a maximum and minimum operating temperature range of 140 Degrees F and 23 Degrees F, respectively.
• Offers disconnection possibilities with the usage of collet release type.
• Measures an overall length of 41mm, accommodating various configurations or environments based on the user's specific conditions.
• Flame-resistant as per specific testing conditions.
• Test results show it meets RoHS standards, indicating it complies with particular globally recognized health and safety standards.
• Utilizes the metric system of measurement, potentially compatible with settings that operate using similar dimensional specifications.
