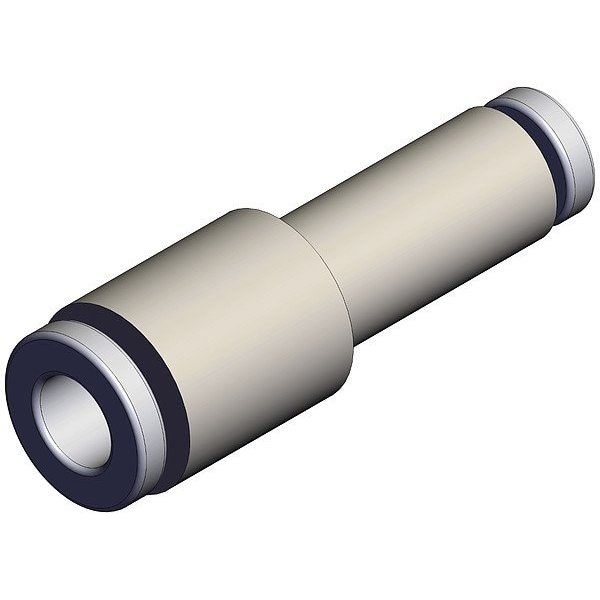

Push-Fit Union, Straight
- Mfr # KQ2H02-04A
- Zoro # G016244839
product price:Â
$
3.14
/ea
Sold in multiples of 4 for $12.56
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Overall Length
14 9/32 mm
Fitting Material
Polybutylene
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KQ2H02-04A
- Zoro #
- G016244839
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Overall Length
- 14 9/32 mm
- Fitting Side 1 Tube Outer Diameter
- 2 mm
- Center-to-End 1 Length
- 11 29/32 mm
- Center-to-End 2 Length
- 13 5/16 mm
- Fitting Side 2 Tube Outer Diameter
- 4 mm
- Wire Rope Length
- 14 9/32 mm
- Length
- 14 9/32 mm
Details
- Item
- Push-Fit Union
- Standards
- RoHS
- Application
- Vacuum
- Fitting Shape
- Straight
- Fitting Material
- Polybutylene
- Fitting Side 1 Connection Type
- Push-to-Connect
- Series
- KQ2
- For Media Type
- Air
- Compatible Tube Material
- FEP, Nylon, PFA, Polyurethane
- Operating Temperature - Minimum
- 23 Degrees F
- Operating Temperature - Maximum
- 140 Degrees F
- Operating Pressure - Maximum
- 1 MPa
- Connector Type
- Reducer
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Fitting Features
- Rigid
- Fitting Side 2 Connection Type
- Push-to-Connect
- Color
- White
Description
Push-Fit Union, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size Not Applicable, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 14 9/32 mm, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material FEP, Nylon, PFA, Polyurethane, System of Measurement Not Applicable
