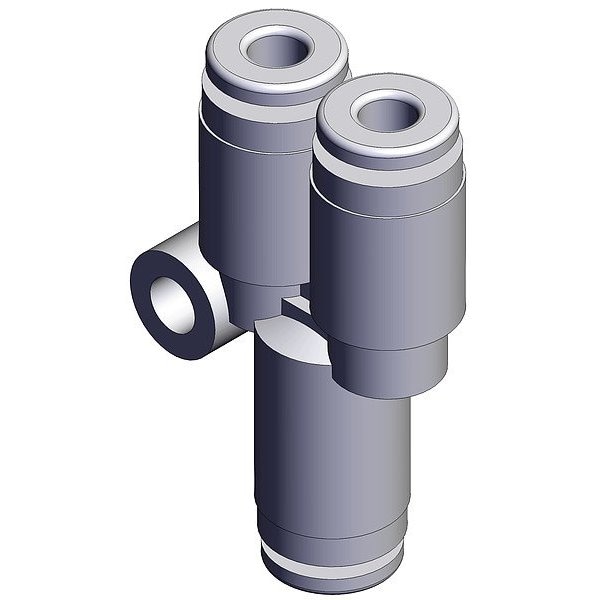

Push-Fit Wye Fitting, White, Rigid
Mfr # KPU04-00
Zoro # G116245767
product price:Â $10.59
/eaKey Features
Standards
RoHS
Fitting Shape
Union
Overall Length
36 13/16 mm
Fitting Side 2 Tube Outer Diameter
4 mm
Fitting Side 1 Tube Outer Diameter
4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KPU04-00
- Zoro #
- G116245767
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Overall Length
- 36 13/16 mm
- Fitting Side 2 Tube Outer Diameter
- 4 mm
- Fitting Side 1 Tube Outer Diameter
- 4 mm
- Fitting Side 3 Tube Outer Diameter
- 4 mm
- Wire Rope Length
- 36 13/16 mm
Details
- Item
- Fitting, Union Y
- Standards
- RoHS
- Fitting Shape
- Union
- Series
- KP
- Compatible Tube Material
- PFA, Polyolefin, Polyurethane
- Operating Temperature - Maximum
- 176 Degrees F
- Operating Pressure - Maximum
- 1 MPa
- Connector Type
- Coupling
- Operating Temperature - Minimum
- -4 Degrees F
- For Media Type
- Compressed Air
- System of Measurement
- Metric
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Side 3 Connection Type
- Push-to-Connect
- Fitting Material
- Polybutylene Terephthalate
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Application
- Pneumatics
- Fitting Side 2 Connection Type
- Push-to-Connect
- Fitting Features
- Rigid
- Color
- White
Description
Push-Fit Wye Fitting, Application Pneumatics, Color White, Material Grade Not Applicable, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Fitting Material Polybutylene Terephthalate, Overall Length 36 13/16 mm, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane
