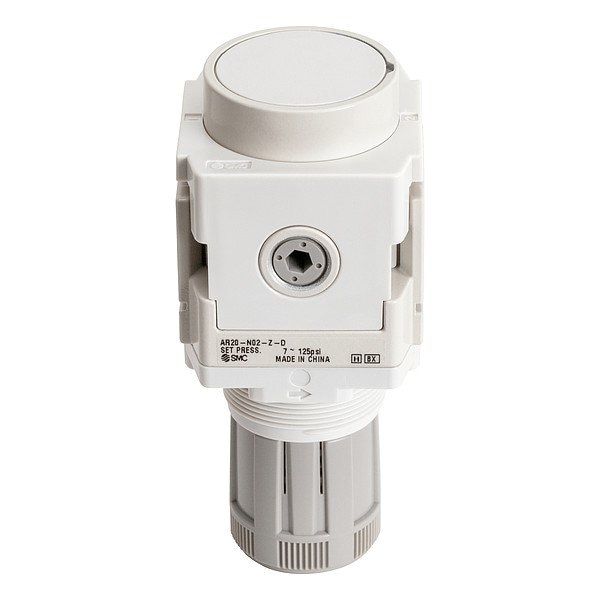

Regulator, Air Line, Knob
- Mfr # AR20-N02-Z-D
- Zoro # G209977858
product price:Â
$
22.75
/ea
Key Features
Body Material
Die-Cast Zinc
Air Flow Direction
Left to Right
Series
AR-D
Overall Depth
40 mm
Air Outlet Size
1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- AR20-N02-Z-D
- Zoro #
- G209977858
- UPC #
- -
- Country of Origin
- China
- Item
- Regulator
- Body Material
- Die-Cast Zinc
- Air Flow Direction
- Left to Right
- Series
- AR-D
- Maximum Operating Pressure
- 1 MPa
- Adjustment Mechanism Material
- Rubber
- Regulator Type
- Relieving
- Minimum Regulated Pressure
- 7.251887 psi
- Air Outlet Type
- NPT
- Pressure Gauge Port Type
- NPT
- For Fluid Type
- Air
- Adjustment Location
- Bottom
- Weight
- 0.14 kg
- Maximum Regulated Pressure
- 123.2821 psi
- Adjustment Mechanism
- Knob
- Standards
- RoHS Compliant
- Air Inlet Type
- NPT
- Pressure Gauge Included
- No
- For Substance Type
- Air
- Modular Connection
- Modular Connection
- Minimum Operating Temperature
- -5 Degrees C
- System Location
- Air Line
- Maximum Operating Temperature
- 60 Degrees C
Description
Regulator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Operating Pressure 1 MPa, Maximum Operating Temperature 60 Degrees C, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 42 mm, Adjustment Location Bottom, System Location Air Line, Series AR-D, Adjustment Mechanism Material Rubber, Air Flow Direction Left to Right, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Die-Cast Zinc, For Fluid Type Air, For Substance Type Air
