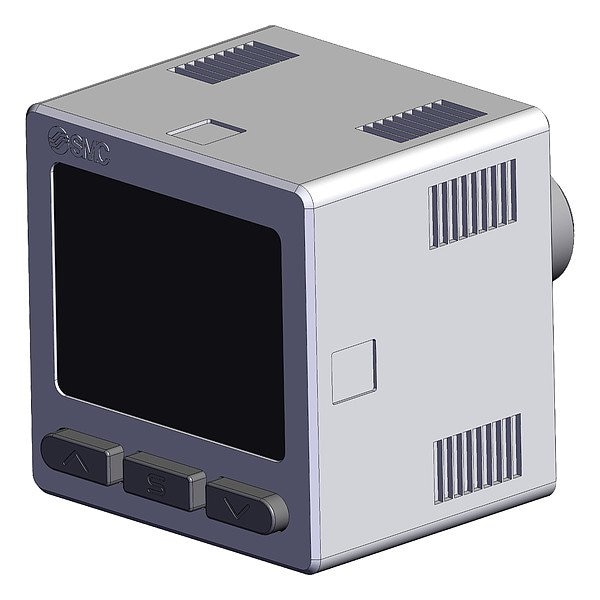

SCREEN HI PRECISION DIG PRESS SWITCH 3
- Mfr # ZSE20-P-N01
- Zoro # G721915666
product price:Â
$
82.59
/ea
Key Features
Series
ZSE20(F)
Overall Width
30 mm
Signal Pressure - Maximum
-101 kPa
Vacuum Cup Port Type
NPT
Maximum Vacuum Pressure
0 kPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZSE20-P-N01
- Zoro #
- G721915666
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Width
- 30 mm
- Vacuum Cup Port Size
- 1/8 in
- Port Size
- 1/8 in
- Overall Depth
- 9 mm
Details
- Item
- High Precision Pressure Switch
- Series
- ZSE20(F)
- Signal Pressure - Maximum
- -101 kPa
- Vacuum Cup Port Type
- NPT
- Maximum Vacuum Pressure
- 0 kPa
- Voltage
- 12 to 24V DC
- Maximum Operating Temperature
- 50 Degrees C
- Minimum Vacuum Pressure
- -101 kPa
- Signal Pressure - Minimum
- 0 kPa
- Weight
- 30 lb
- Port Type
- NPT
- Switch Output Type
- 1 NPN/PNP Output
- Electrical Connection Type
- 4-Pin Snap-In Plug
- Minimum Operating Temperature
- -5 Degrees C
Description
High Precision Pressure Switch, Electrical Connection Type 4-Pin Snap-In Plug, Lead Length Not Applicable, Maximum Operating Temperature 50 Degrees C, Maximum Vacuum Pressure 0 kPa, Minimum Operating Temperature -5 Degrees C, Minimum Vacuum Pressure -101 kPa, Overall Depth 9 mm, Overall Width 30 mm, Port Size 1/8 in, Port Type NPT, Series ZSE20(F), Signal Pressure - Maximum -101 kPa, Signal Pressure - Minimum 0 kPa, Switch Output Type 1 NPN/PNP Output, Vacuum Cup Port Size 1/8 in
