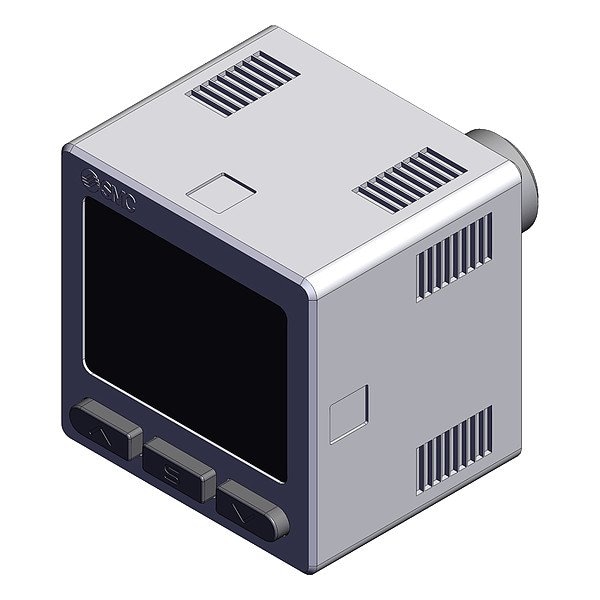

Screen High Precision Dig Press Switch 3
- Mfr # ZSE20F-P-01
- Zoro # G821916235
product price:Â
$
82.59
/ea
Key Features
Series
ZSE20C(F)
Electrical Connection Type
4-Pin Snap-In Plug
Signal Pressure - Minimum
-100 kPa
Voltage
12 to 24V DC
Maximum Operating Temperature
50 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZSE20F-P-01
- Zoro #
- G821916235
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Port Size
- 1/8 in
- Overall Depth
- 9 mm
- Overall Width
- 30 mm
Details
- Series
- ZSE20C(F)
- Electrical Connection Type
- 4-Pin Snap-In Plug
- Item
- High Precision Pressure Switch
- Signal Pressure - Minimum
- -100 kPa
- Voltage
- 12 to 24V DC
- Maximum Operating Temperature
- 50 Degrees C
- Signal Pressure - Maximum
- 100 kPa
- Weight
- 32 lb
- Switch Output Type
- 2 NPN/PNP Outputs Open Collector
- Port Type
- R
- Minimum Vacuum Pressure
- -101 kPa
- Maximum Vacuum Pressure
- 0 kPa
- Minimum Operating Temperature
- -5 Degrees C
Description
High Precision Pressure Switch, Electrical Connection Type 4-Pin Snap-In Plug, Lead Length Not Applicable, Maximum Operating Temperature 50 Degrees C, Maximum Vacuum Pressure 0 kPa, Minimum Operating Temperature -5 Degrees C, Minimum Vacuum Pressure -101 kPa, Overall Depth 9 mm, Overall Width 30 mm, Port Size 1/8 in, Port Type R, Series ZSE20C(F), Signal Pressure - Maximum 100 kPa, Signal Pressure - Minimum -100 kPa, Switch Output Type 2 NPN/PNP Outputs Open Collector, Voltage 12 to 24V DC
