Shop SMC

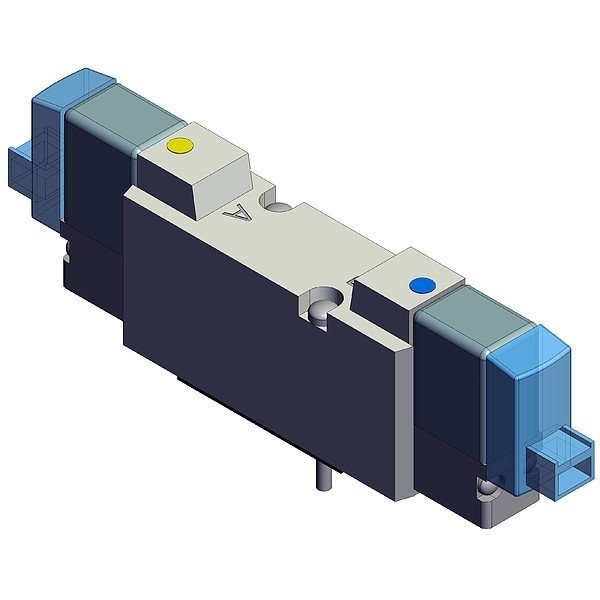

Solenoid Air Control Valve, 107 mm L

  • Mfr # SYJ5243-5LOZ

  • Zoro # G321915110

product price:  $94.55
/ea

Key Features

Operating Temperature - Minimum
-10 Degrees C
Body Style
Base-Mounted
Coefficient of Volume (Cv)
0.21
Pilot Pressure
0.1 MPa
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5243-5LOZ
Zoro #
G321915110
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/16 mm
Overall Width
16 mm
Wire Rope Length
107 mm
Overall Length
107 mm

Details

Operating Temperature - Minimum
-10 Degrees C
Body Style
Base-Mounted
Coefficient of Volume (Cv)
0.21
Pilot Pressure
0.1 MPa
Number of Positions
Two-Position
Operating Temperature - Maximum
50 Degrees C
Actuator Type
Double Solenoid
Includes Solenoid Coil
Solenoid Coil Included
Product Type
Solenoid Air Control Valve
Body Features
Double
Number of Ports
5
Lubrication
Lubrication Not Required
Pilot Port Connection Gender
Female
Response Time
25 msec
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Return Action
Pilot Return
Valve Action
Normally Closed
Number of Ways
Five-Way
Operating Pressure - Minimum
0.1 MPa
Body Material
Aluminum
For Media
Air
Exhaust Port Connection Gender
Female
Power Consumption
0.5 W
Seal Material
Rubber
Item
Solenoid Air Control Valve
Pilot Type
Internal Pilot
Voltage
24V DC
Electrical Connection Type
Plug-In
Operating Pressure - Maximum
0.7 MPa
Series
SYJ5000
Valve Type
Spool
Override
Non-Locking
Inlet Port Connection Gender
Female

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.1 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 107 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
