Shop SMC

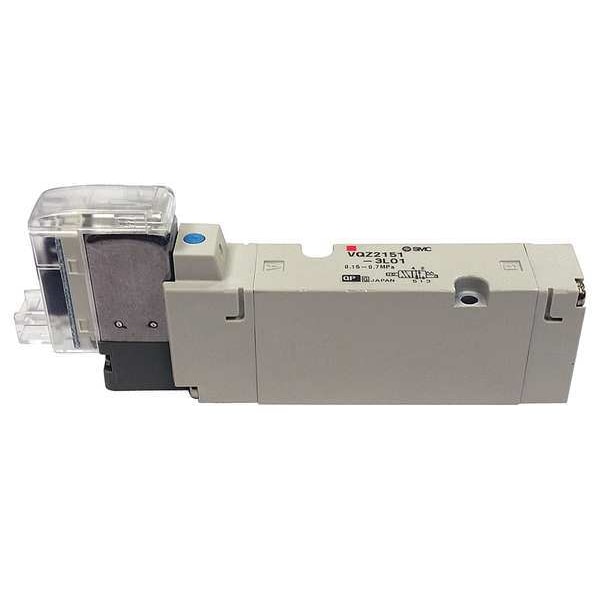

Solenoid Air Control Valve, 10.92CFM, 0.39

  • Mfr # VQZ2151-3LO1

  • Zoro # G9602117

product price:  $57.59
/ea

Key Features

Body Style
Inline
Series
VQZ2000
Voltage
110V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
15 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VQZ2151-3LO1
Zoro #
G9602117
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
2 5/16 in
Overall Width
19/32 in
Overall Length
2 7/8 in
Wire Rope Length
2 7/8 in

Details

Item
Solenoid Air Control Valve
Body Style
Inline
Series
VQZ2000
Voltage
110V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
15 psi
Power Consumption
0.35 W
Coefficient of Volume
0.39
Body Material
Aluminum
Override
Non-Locking
Actuator/Return
Solenoid/Spring
Electrical Connections
Lead Wire
Valve Ways and Positions
5-Way/2-Position
Operational Pressure Range
15 to 105 psi
CFM
10.92
Normally Open / Normally Closed
Normally Open/Normally Closed
Ambient Temp. Range
14 Degrees to 122 Degrees F
Shifting Technology
Solenoid/Spring
Max. CFM - Valves
10.92 cfm
Air Valve Type
5-Way, 2-Position
Pressure Range
15 to 105 psi
Standards
RoHS Compliant
Number of Positions
Two-Position
Number of Ways
Five-Way
Operating Pressure - Minimum
15 psi
Valve Type
Spool
Return Action
Spring Return
Lubrication
Lubrication Not Required
Valve Action
Normally Open/Normally Closed
Response Time
20 msec
Number of Ports
5
Pilot Type
Internal Pilot
Flow Rate - Maximum
10.92 cfm
Vacuum Rating
Not Vacuum Operable
Product Type
Solenoid Air Control Valve
Spool Material
Aluminum
Operating Pressure - Maximum
101 psi
For Media
Air, Inert Gas
Seal Material
Rubber
Electrical Connection Type
Plug-In
Actuator Type
Double Solenoid
Coefficient of Volume (Cv)
1.2
Operating Temperature - Maximum
122 Degrees F
Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Minimum
14 Degrees F

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 110V AC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Max. CFM - Valves 10.92 cfm, Operational Pressure Range 15 to 105 psi, Normally Open/Normally Closed, Body Style Inline, Pilot Pressure 15 psi, Coefficient of Volume 0.39, Lead Wire Electrical Connections, Shifting Technology Solenoid/Spring, Power Consumption 0.35 W
