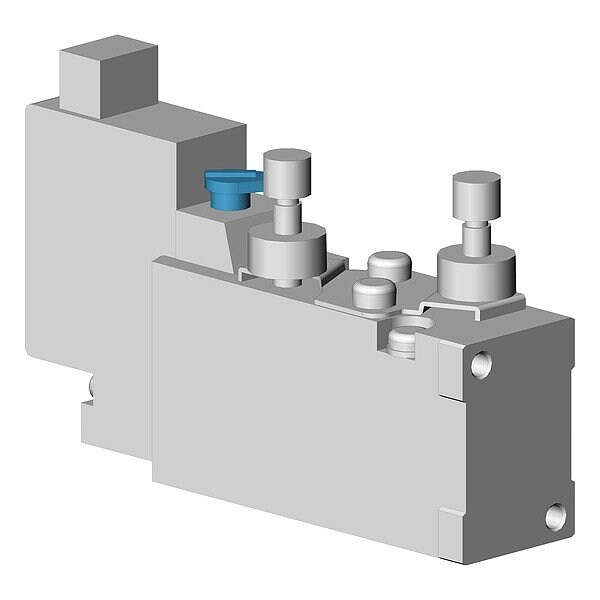

Solenoid Air Control Valve, 110V AC

  • Mfr # SYJ5153-3MOZE

  • Zoro # G621915957

product price:
$
86.45
/ea

Key Features

Body Features
Single
Body Style
Base-Mounted
Pilot Pressure
0.15 MPa
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Includes Solenoid Coil
Solenoid Coil Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYJ5153-3MOZE
Zoro #
G621915957
UPC #
-
Country of Origin
Japan
Body Features
Single
Body Style
Base-Mounted
Pilot Pressure
0.15 MPa
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Item
Solenoid Air Control Valve
Includes Solenoid Coil
Solenoid Coil Included
Exhaust Port Connection Gender
Female
Inlet Port Connection Gender
Female
Number of Ways
Five-Way
Lubrication
Lubrication Not Required
Electrical Connection Type
Plug-In
Response Time
25 msec
Actuator Type
Single Solenoid
Pilot Type
Internal Pilot
Pilot Port Connection Gender
Female
Valve Type
Spool
Power Consumption
0.5 W
For Media
Air
Coefficient of Volume (Cv)
0.21
Number of Positions
Two-Position
Voltage
110V AC
Seal Material
Rubber
Operating Temperature - Minimum
-10 Degrees C
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Operating Pressure - Minimum
0.1 MPa
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Valve Action
Normally Closed
Number of Ports
5
Series
SYJ5000
Body Material
Aluminum
Return Action
Spring Return

Description

Solenoid Air Control Valve, Voltage 110V AC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 103 13/32 mm, Overall Width 15 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
