Shop SMC

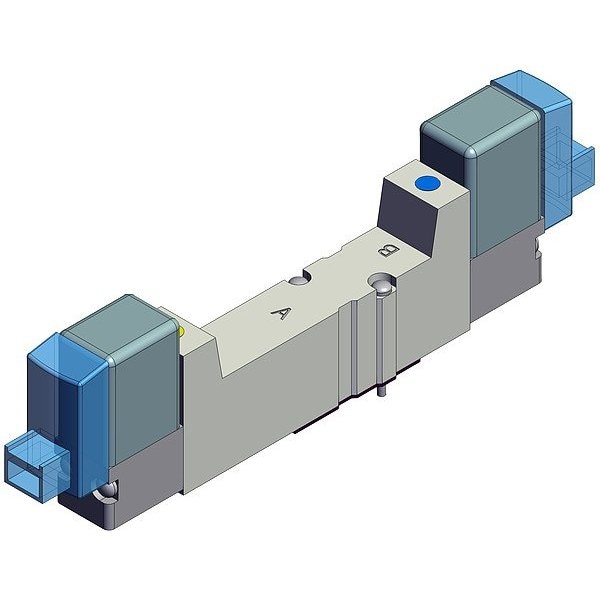

Solenoid Air Control Valve, 111 1/2 mm L

  • Mfr # SYJ3333-5LOU

  • Zoro # G821915801

product price:  $87.19
/ea

Key Features

Body Style
Base-Mounted
Response Time
30 msec
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Overall Height
39 3/32 mm
Body Features
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3333-5LOU
Zoro #
G821915801
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/32 mm
Overall Width
11 mm
Wire Rope Length
111 1/2 mm
Overall Length
111 1/2 mm

Details

Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Response Time
30 msec
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Body Features
Single
Center Position
Closed
Number of Ports
4
For Media
Air
Override
Non-Locking
Pilot Type
Internal Pilot
Inlet Port Connection Gender
Female
Seal Material
Rubber
Operating Pressure - Maximum
0.7 MPa
Series
SYJ3000
Valve Action
Normally Closed
Operating Pressure - Minimum
0.15 MPa
Exhaust Port Connection Gender
Female
Number of Ways
Five-Way
Valve Type
Spool
Actuator Type
Single Solenoid
Power Consumption
0.5 W
Lubrication
Lubrication Not Required
Operating Temperature - Minimum
-10 Degrees C
Pilot Pressure
0.15 MPa
Voltage
24V DC
Product Type
Solenoid Air Control Valve
Return Action
Spring Return
Electrical Connection Type
Plug-In
Includes Solenoid Coil
Solenoid Coil Included
Pilot Port Connection Gender
Female
Operating Temperature - Maximum
50 Degrees C
Coefficient of Volume (Cv)
0.12
Body Material
Die Cast Zinc

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Closed, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 111 1/2 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
