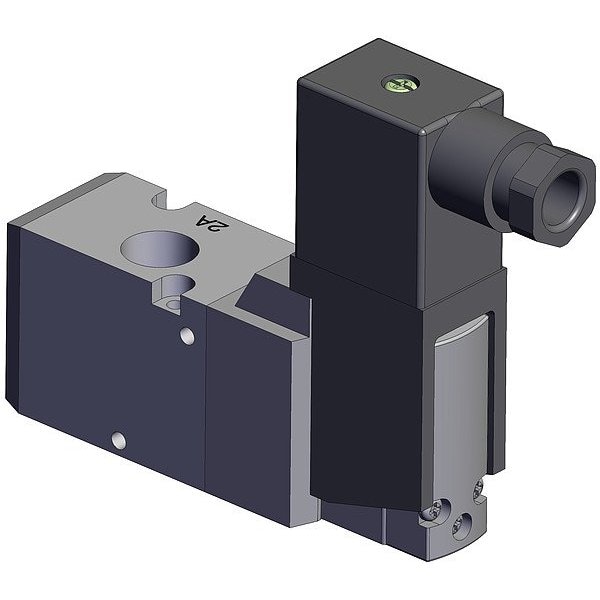

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP342-3DZ1-02TA

  • Zoro # G521915996

product price:  $78.29
/ea

Key Features

Electrical Connection Type
DIN Solenoid Connector
Response Time
38 msec
Valve Action
Normally Closed
Wire Rope Length
113 mm
Inlet Port Connection Type
NPTF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342-3DZ1-02TA
Zoro #
G521915996
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
113 mm
Inlet Port Connection Size
1/4
Exhaust Port Connection Size
1/4
Overall Height
83 mm
Overall Width
27 mm
Overall Length
113 mm

Details

Electrical Connection Type
DIN Solenoid Connector
Response Time
38 msec
Valve Action
Normally Closed
Inlet Port Connection Type
NPTF
Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Maximum
50 Degrees C
Pilot Port Connection Gender
Female
Number of Ports
3
Body Features
Single
Valve Type
Spool
Operating Pressure - Maximum
0.7 MPa
Pilot Pressure
0.2 MPa
Return Action
Spring Return
Coefficient of Volume (Cv)
1
Product Type
Solenoid Air Control Valve
Exhaust Port Connection Gender
Female
Seal Material
Rubber
Number of Ways
Three-Way
Inlet Port Connection Gender
Female
Item
Solenoid Air Control Valve
Actuator Type
Single Solenoid
Pilot Type
Internal Pilot
Operating Pressure - Minimum
0.2 MPa
Body Style
Body-Ported
Operating Temperature - Minimum
-10 Degrees C
Override
Non-Locking
Voltage
110V AC
Body Material
Aluminum
Number of Positions
Two-Position
Power Consumption
0.55 W
Series
VP300

Description

Solenoid Air Control Valve, Voltage 110V AC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 83 mm, Overall Length 113 mm, Overall Width 27 mm
