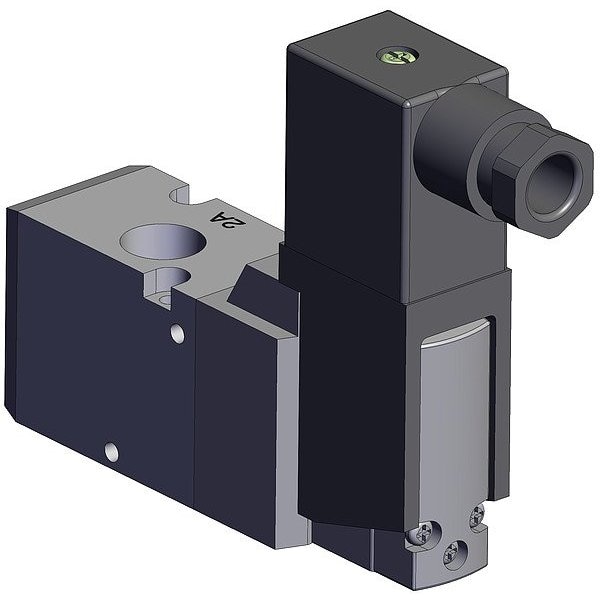

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP342-5DZ1-02NA

  • Zoro # G821915184

product price:  $82.39
/ea

Key Features

Wire Rope Length
113 mm
Pilot Port Connection Gender
Female
Return Action
Spring Return
Valve Action
Normally Closed
Seal Material
Rubber
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342-5DZ1-02NA
Zoro #
G821915184
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
113 mm
Inlet Port Connection Size
1/4
Overall Width
27 mm
Overall Height
83 mm
Exhaust Port Connection Size
1/4

Details

Pilot Port Connection Gender
Female
Item
Solenoid Air Control Valve
Return Action
Spring Return
Valve Action
Normally Closed
Seal Material
Rubber
Operating Temperature - Minimum
-10 Degrees C
Operating Temperature - Maximum
50 Degrees C
Operating Pressure - Minimum
0.2 MPa
Actuator Type
Single Solenoid
Exhaust Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Number of Positions
Two-Position
Response Time
38 msec
Operating Pressure - Maximum
0.7 MPa
Exhaust Port Connection Type
NPT
Pilot Pressure
0.2 MPa
Number of Ways
Three-Way
Series
VP300
Power Consumption
0.55 W
Voltage
24V DC
Body Features
Single
Coefficient of Volume (Cv)
1
Body Style
Body-Ported
Number of Ports
3
Electrical Connection Type
DIN Solenoid Connector
Product Type
Solenoid Air Control Valve
Body Material
Aluminum
Inlet Port Connection Type
NPT
Valve Type
Spool
Inlet Port Connection Gender
Female
Pilot Type
Internal Pilot
Override
Non-Locking

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 83 mm, Overall Length 113 mm, Overall Width 27 mm
