Shop SMC

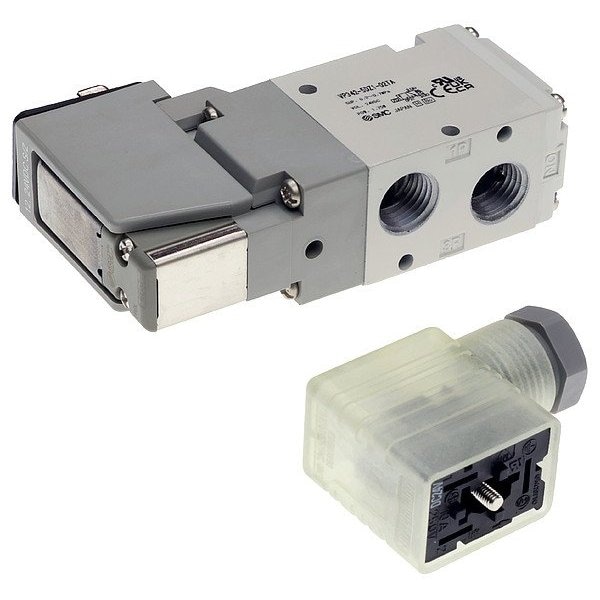

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP342-5DZ1-02TA

  • Zoro # G821915337

product price:
$
78.29
/ea

Key Features

Inlet Port Connection Gender
Female
Overall Height
83 mm
Voltage
24V DC
Overall Width
27 mm
Pilot Pressure
0.2 MPa
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP342-5DZ1-02TA
Zoro #
G821915337
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
83 mm
Overall Width
27 mm
Wire Rope Length
113 mm
Exhaust Port Connection Size
1/4
Inlet Port Connection Size
1/4
Overall Length
113 mm
Length
113 mm

Details

Inlet Port Connection Gender
Female
Voltage
24V DC
Pilot Pressure
0.2 MPa
Body Style
Body-Ported
Number of Positions
Two-Position
Exhaust Port Connection Type
NPT
Return Action
Spring Return
Pilot Type
Internal Pilot
Power Consumption
0.55 W
Number of Ways
Three-Way
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Includes Solenoid Coil
Solenoid Coil Included
Series
VP300
Operating Pressure - Minimum
0.2 MPa
Exhaust Port Connection Gender
Female
Seal Material
Rubber
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Body Features
Single
Operating Temperature - Minimum
-10 Degrees C
Coefficient of Volume (Cv)
1
Pilot Port Connection Gender
Female
Actuator Type
Single Solenoid
Inlet Port Connection Type
NPT
Electrical Connection Type
DIN Solenoid Connector
Valve Type
Spool
Response Time
38 msec
Item
Solenoid Air Control Valve
Body Material
Aluminum
Number of Ports
3
Valve Action
Normally Closed

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 83 mm, Overall Length 113 mm, Overall Width 27 mm
